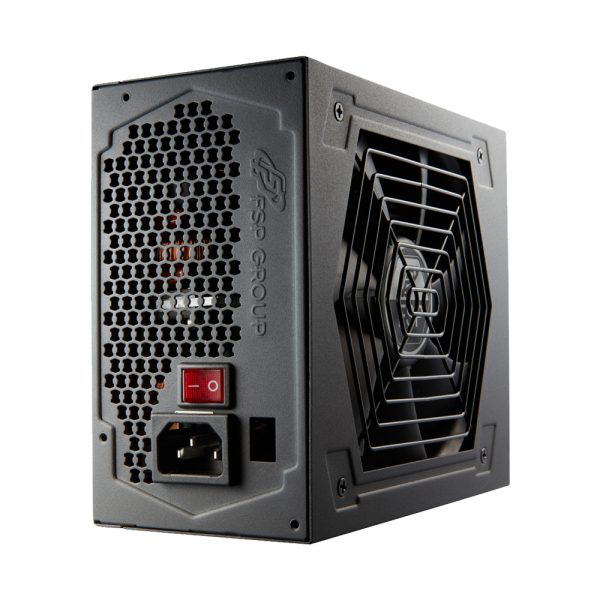

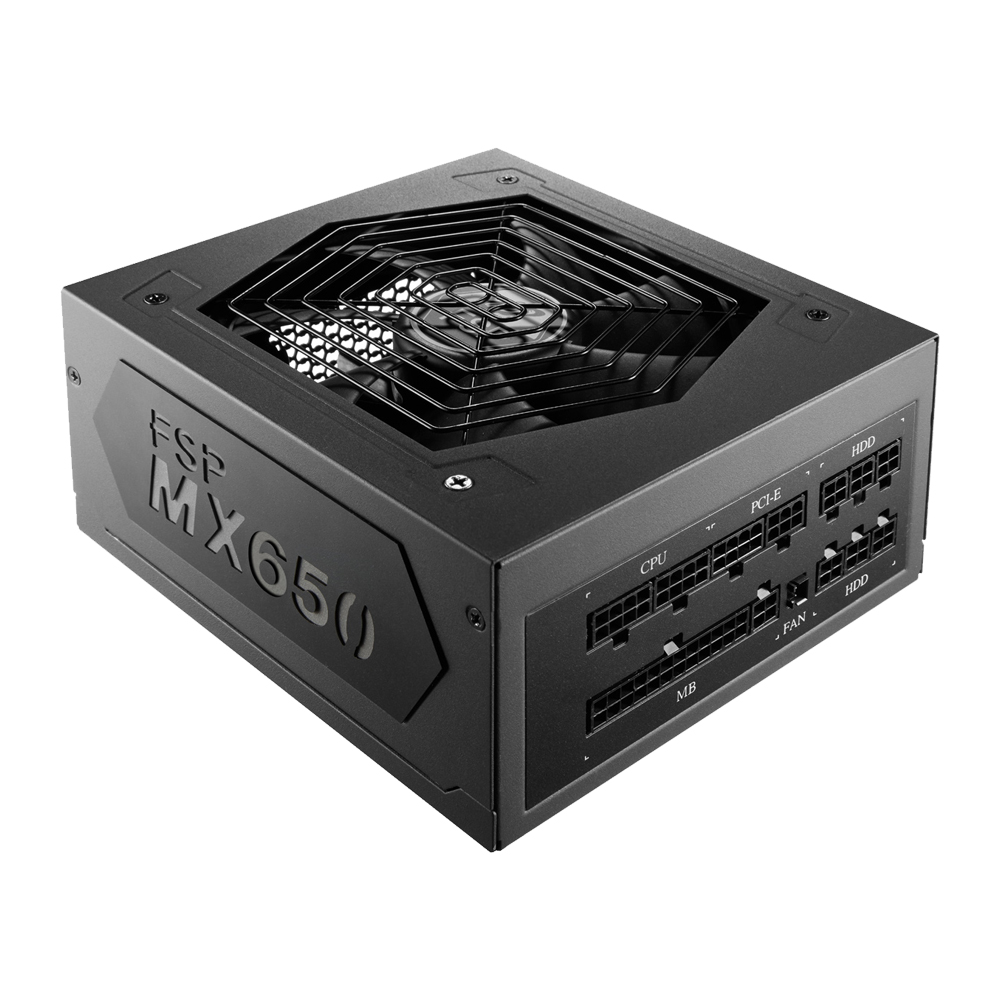

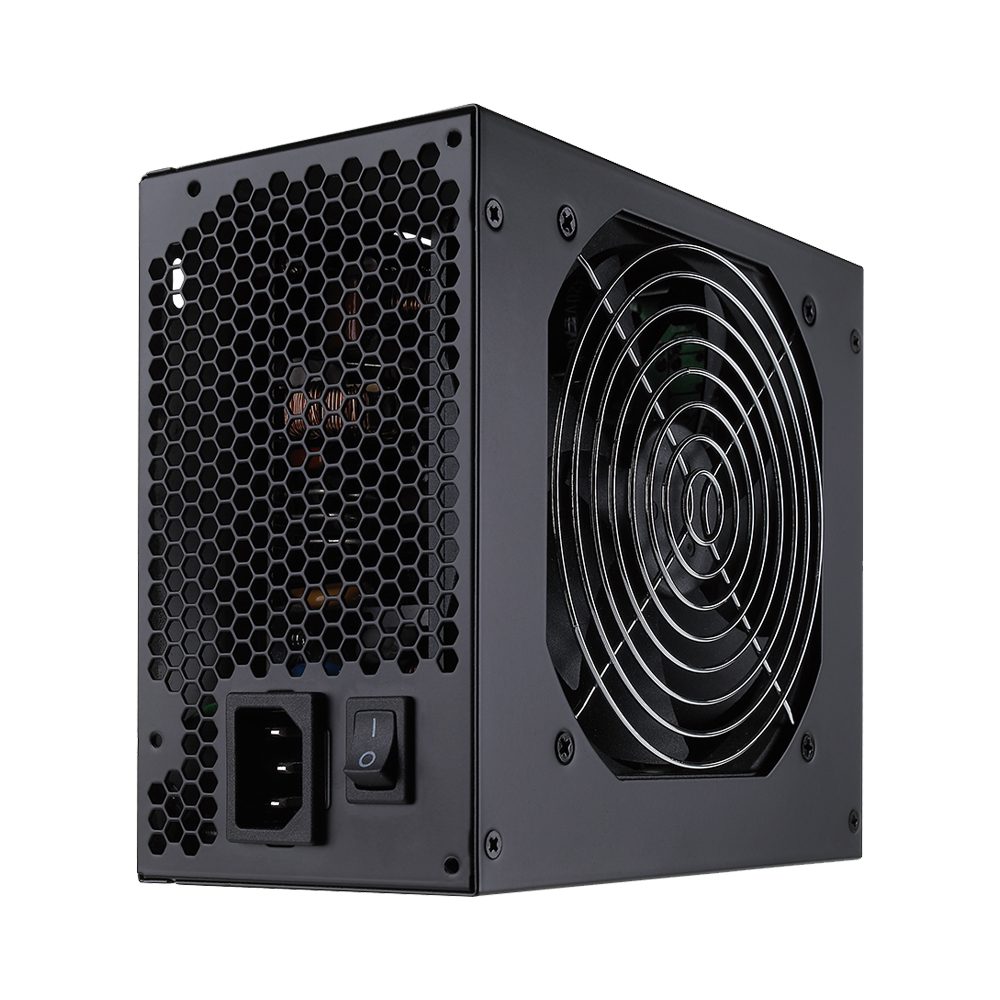

PSU | FSP HYDRO MX 650W

HYDRO MX series meets the market professional and provides efficiency more than 88% with 80 Plus® 230V EU Brozen 230V certification. With the full modular, Dc – Dc module design and unique innovative semi-fanless with 135mm FDB Fan, HYDRO MX series optimized the airflow in case, no-hassle with case side panel.

  • Complies with ATX12 v2.4 & EPS12 v2.92
  • Efficiency ≧ 88% @ typical Load
  • Active PFC ≧ 0.9
  • Hold up time > 17ms

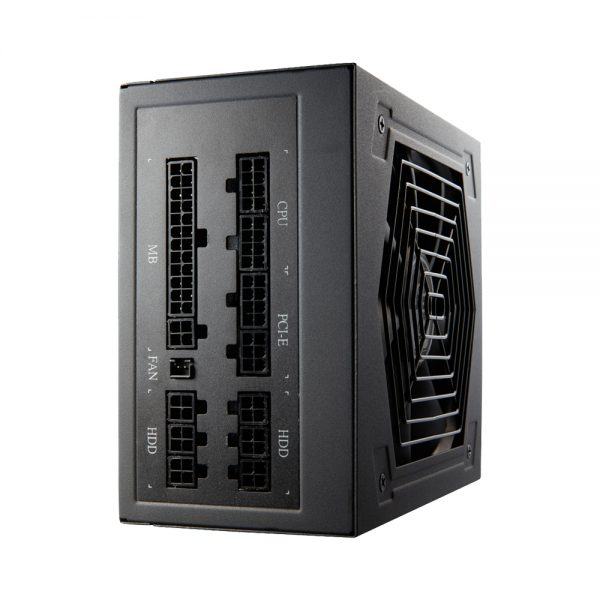

  • Full modular design with all black round cables
  • +12V single-rail design
  • Dc – Dc module design
  • Wide input voltage 140-265V
  • Semi-fanless design with 135mm FDB fan
  • Use solid capacitor in secondary
  • Complete protextions: OVP, SCP, OPP
Category: Tags: , ,

Description

ModelFSP650-50YDM
Rated Output Power650W
Form FactorATX
80 PLUS Certification230V EU Bronze
Input Voltage140-265Vac
Input Current6.3A
Input Frequency50-60Hz
PFCActive PFC > 0.9
Efficiency88% @ typical load
Fan Type135 X 135 mm FDB Bearing
Dimensions(L x W x H)150 X 170 X 86 mm
Weight2642g
Operation Temp.200,000 Hrs
ProtectionOVP/SCP/OPP
Safety ApprovalCCC
