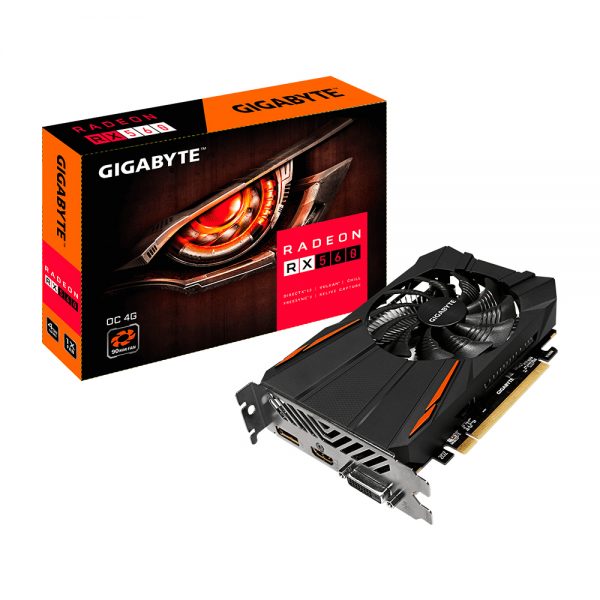

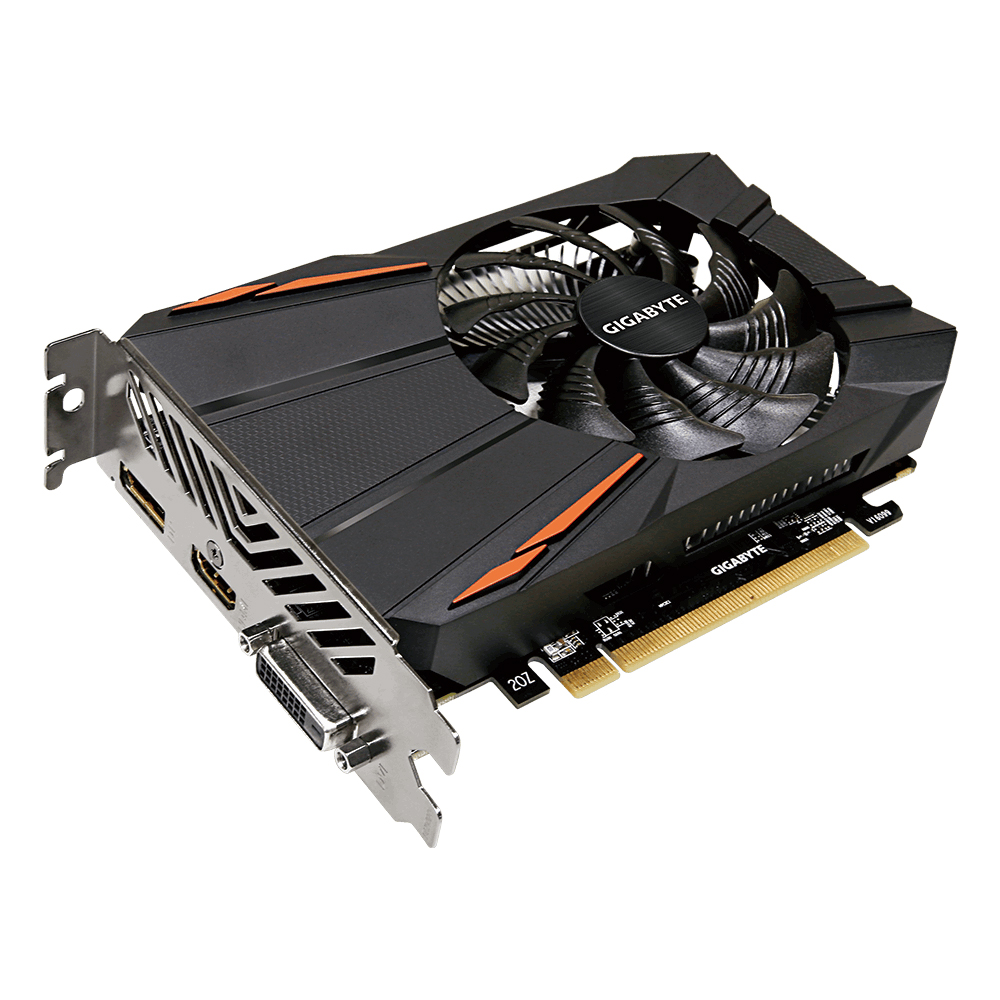

GV-RX560OC-4GD
Features
Powered by Radeon™ RX 560(14CU)
Integrated with 4GB GDDR5 128bit memory

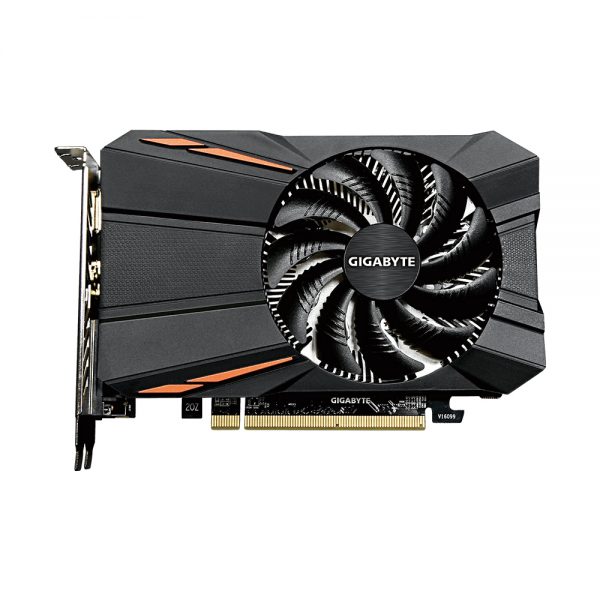

90mm Unique Blade Fan Design
One-click Super Overclocking
Supports HDMI 4K@60Hz and DP 8K@60Hz
Hardware-accelerated H.265 encode/decode
Core Clock
OC mode: 1199 MHz
Gaming mode: 1189 MHz
(Reference clock: 1176 MHz )
Description
| Graphics Processing | Radeon RX560 |
| Core Clock | OC mode: 1199 MHz Gaming mode: 1189 MHz (Reference clock: 1176 MHz ) |
| Stream Processors | 896(14CU) |
| Process Technology | 14 nm |
| Memory Clock | 6000 MHz |
| Memory Size | 4 GB |
| Memory Type | GDDR5 |
| Memory Bus | 128 bit |

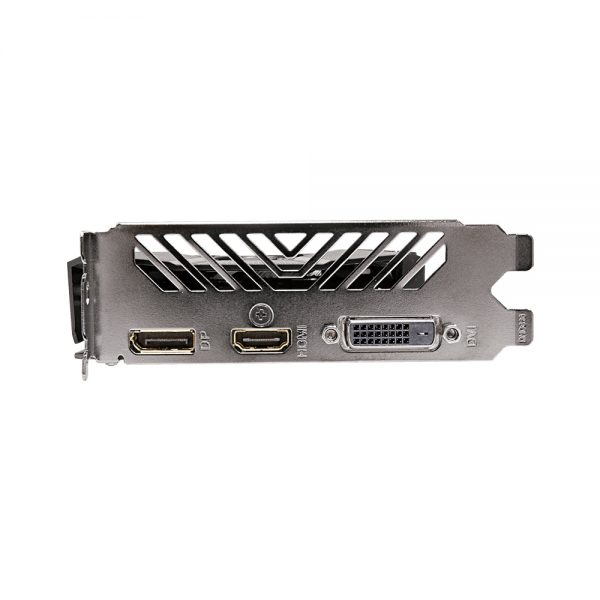

| Output | Dual-link DVI-D *1 HDMI-2.0b*1 (Max Resolution: 4096x2160 @60 Hz Display Port-1.4 *1 (Max Resolution: 7680x4320 @60 Hz) |
| Digital max resolution | 7680x4320@60Hz |
| Multi-view | 3 |
| Card size | H=29.2 L=170 W=114.6 mm |
| PCB Form | ATX |
| DirectX | 12 |
| OpenGL | 4.5 |
| Recommended PSU | 400W |
