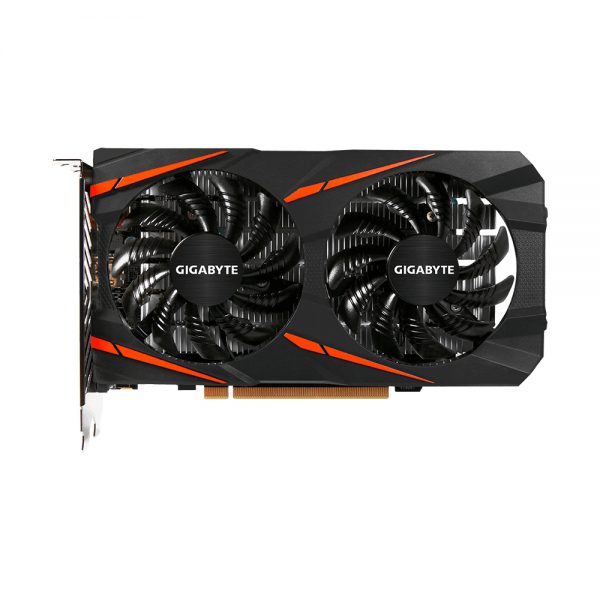

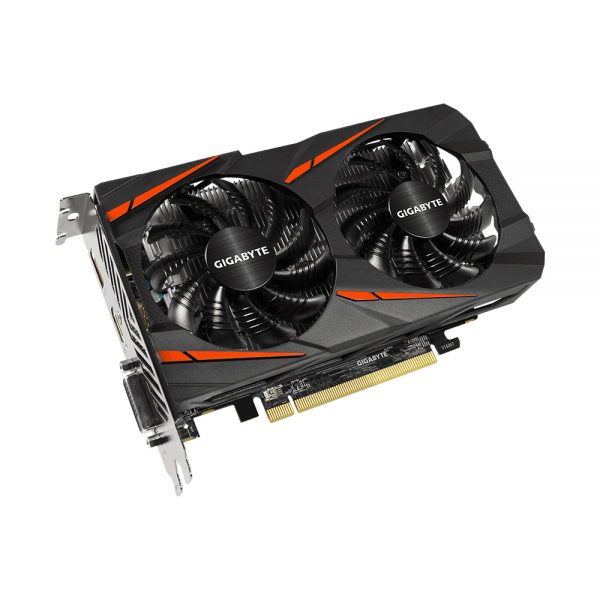

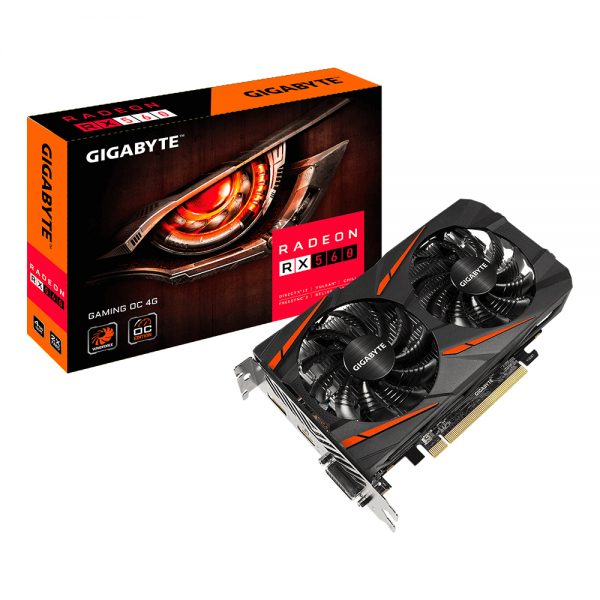

GV-RX560Gaming OC-4GD
Features
Powered by Radeon™ RX 560(16CU)
Integrated with 4GB GDDR5 128bit memory
WINDFORCE 2X with Blade Fan Design
One-click Super Overclocking
Supports HDMI 4K@60Hz and DP 8K@60Hz
Hardware-accelerated H.265 encode/decode
Core Clock
OC mode: 1234MHz
Gaming mode: 1224MHz
Reference clock: 1176 MHz
Description
| Graphics Processing | Radeon RX560 |
| Core Clock | Core Clock OC mode: 1300 MHz Gaming mode: 1287 MHz Reference clock: 1275 MHz |
| Process Technology | 14 nm |
| Memory Clock | 7000 MHz |
| Memory Size | 4 GB |
| Memory Type | GDDR5 |
| Memory Bus | 128 bit |

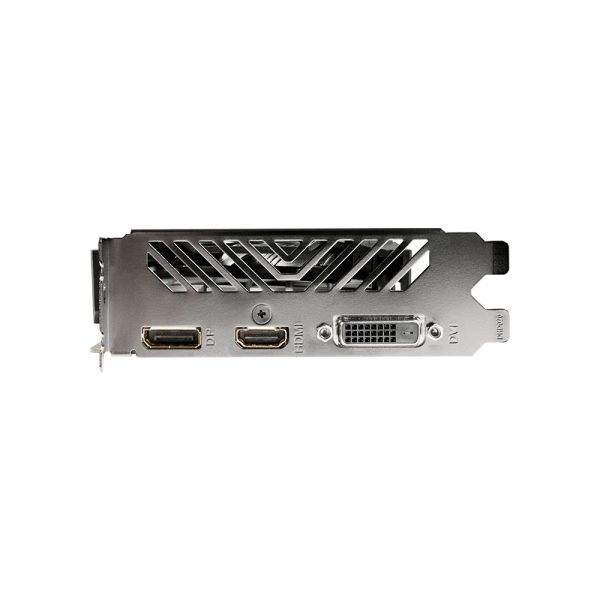

| Output | Dual-link DVI-D *1 HDMI-2.0b*1 (Max Resolution: 4096x2160 @60 Hz) Display Port-1.4 *1 (Max Resolution: 7680x4320 @60 Hz) |
| Digital max resolution | 7680x4320@60Hz |
| Multi-view | 3 |
| Card size | H=37 L=190 W=111 mm |
| PCB Form | ATX |
| OpenGL | 4.5 |
| Recommended PSU | 400W |
| Power Connectors | 6 pin |
