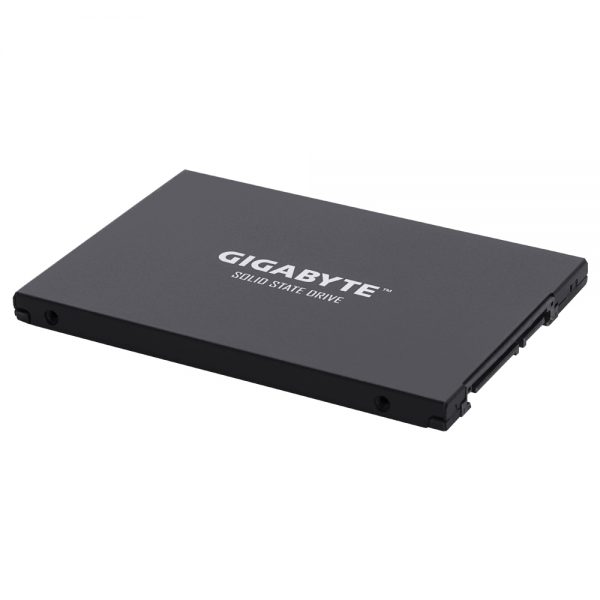

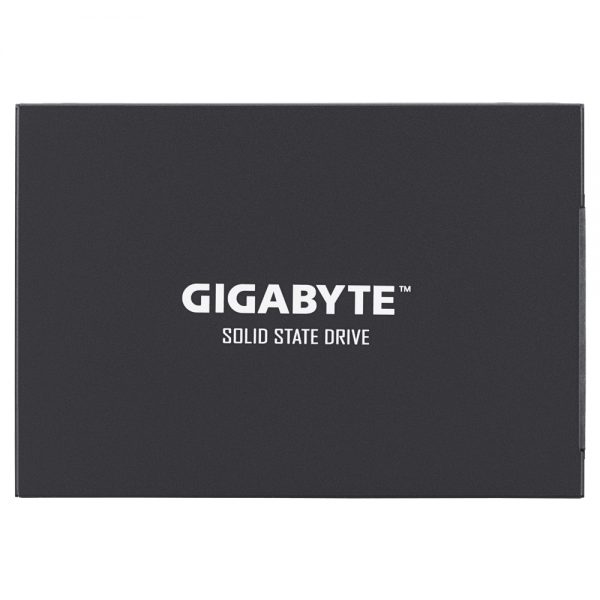

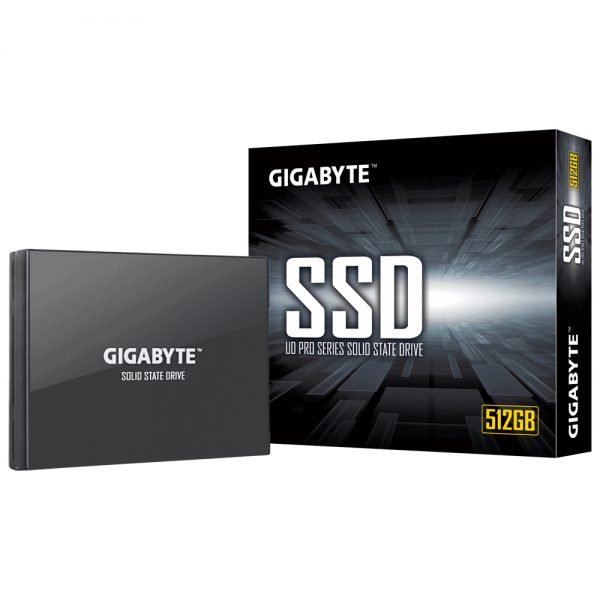

SSD | GIGABYTE UD PRO 512GB

  • Form Factor: 2.5-inch internal SSD
  • Interface: SATA 6.0Gb/s
  • Total Capacity: 512GB*
  • Warranty: Limited 3-year
  • Sequential Read speed : 530 MB/s**
  • Sequential Write speed : 500 MB/s**
  • Toshiba 3D TLC NAND Flash offers blazing speed, high capacity & enhanced reliability
  • External DDR3 DRAM Cache for Better Sustain Speed
  • TRIM & S.M.A.R.T supported

* Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
** Speeds based on internal testing. Actual performance may vary.

Description

InterfaceSATA 6.0Gb/s
Form Factor2.5-inch internal SSD
Total Capacity512GB
WarrantyLimited 3-year or 200TBW
NANDToshiba BiCS3 3D TLC
External DDR Cache512MB
Sequential Read speed530 MB/s
Sequential Write speed500 MB/s
Random Read IOPS80k
Random Write IOPS75k
Dimension (W x H x L)69.85 x 7 x 100 mm
Mean time between failure (MTBF)1.8M hours
Power Consumption (Active)Average: R : 2240mW; W : 2610mW
Power Consumption (Idle)170mW
Temperature (Operating)0°C to 70°C
Temperature (Storage)-40°C to 85°C
Note* 1GB = 1 billion bytes. Actual useable capacity may vary.
** 3 years or 200 TBW, whichever comes first.
*** TBW (Terabyte Written): the total amount of data that can be written into an SSD before it is likely to fail.
**** Speeds based on internal testing. Actual performance may vary.
