|Interface||PCI-Express 3.0 x2, NVMe 1.3|

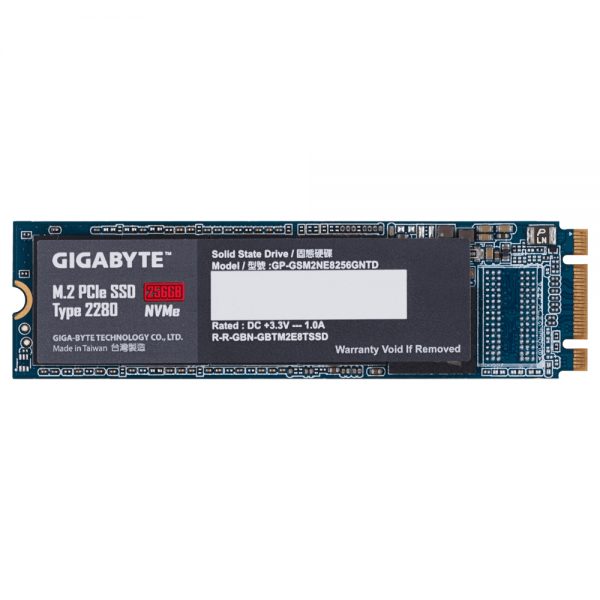

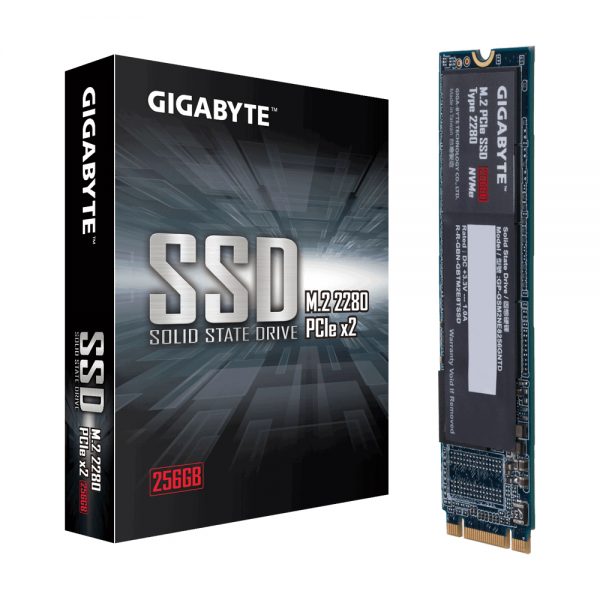

|Form Factor||M.2 2280|
|Warranty||Limited 3-year or 200TBW|
|External DDR Cache||N/A|
|Sequential Read speed||Up to 1200 MB/s|
|Sequential Write speed||Up to 800 MB/s|
|Random Read IOPS||Up to 80K|
|Random Write IOPS||Up to 150K|
|Dimension (W x H x L)||80 x 22 x 2.3 mm|
|Mean time between failure (MTBF)||1.5M hours|
|Power Consumption (Active)||Average : R : 2200mW ; W : 2100mW|
|Power Consumption (Idle)||50mW|
|Temperature (Operating)||0°C to 70°C|
|Temperature (Storage)||-40°C to 85°C|
|Note||*1GB = 1 billion bytes. Actual useable capacity may vary.
**3 years or 200 TBW, whichever comes first.
***TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.
****Speeds based on internal testing. Actual performance may vary.
