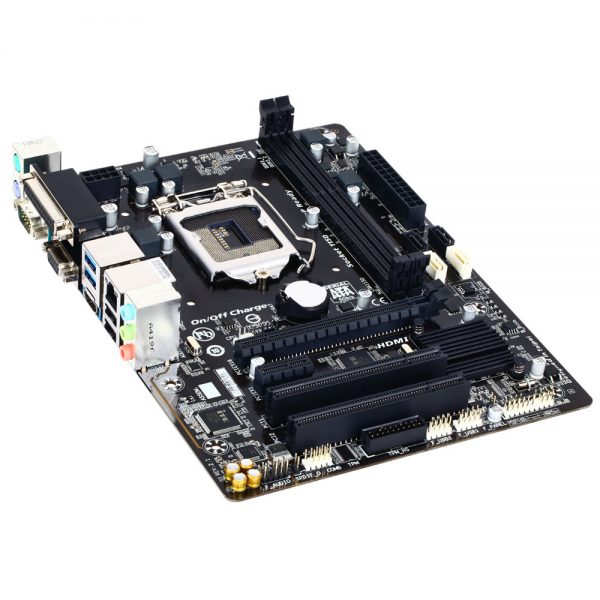

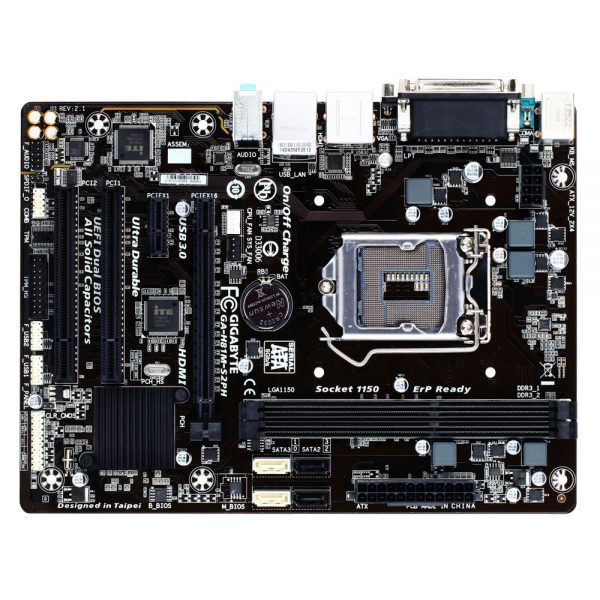

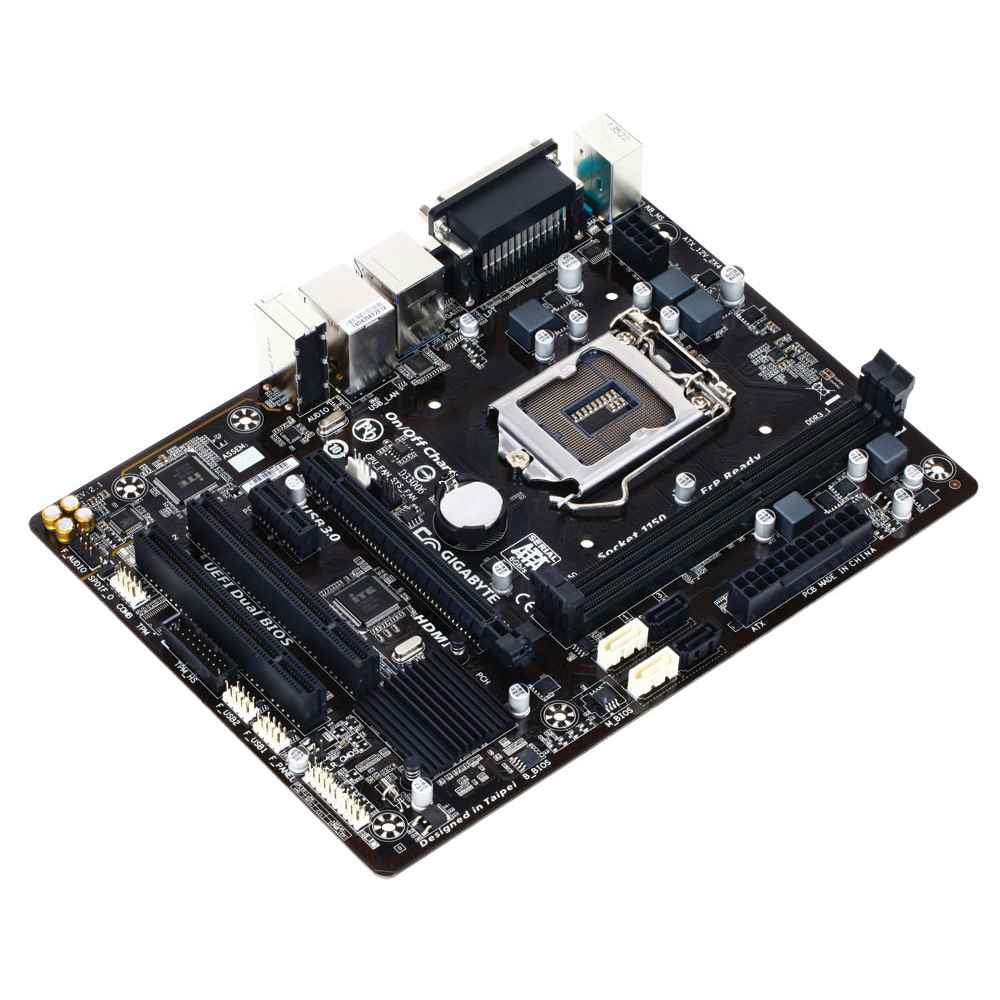

GA-H81M-S2PH

  • Supports 4th Generation Intel® Core™ processors
  • GIGABYTE Ultra Durable™ 4 Plus Technology
  • Audio Noise Guard with High Quality Audio Capacitors
  • GIGABYTE UEFI DualBIOS™
  • GIGABYTE On/Off Charge™ for USB devices
  • LAN with high ESD Protection
  • HDMI, D-SUB, LPT, COM port on rear panel
  • All solid capacitors design

Description

APU1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)
Chipset1. Intel® H81 Express Chipset
Memory1. 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
3. Dual channel memory architecture
4. Support for DDR3 1600/1333 MHz memory modules
5. Support for non-ECC memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor - Intel® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
2. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
3. Maximum shared memory of 1 GB
Audio1. Realtek® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out
LAN1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots1. 1 x PCI Express x16 slot, running at x16
2. 1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 2.0 standard.)
3. 2 x PCI slots
Storage Interface Chipset:

1. 2 x SATA 6Gb/s connectors (SATA3 0/1)
2. 2 x SATA 3Gb/s connectors (SATA2 2/3)
USB Chipset:

1. 2 x USB 3.0/2.0 ports on the back panel
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 2 x SATA 6Gb/s connectors
4. 2 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 1 x system fan header
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 2 x USB 2.0/1.1 header
11. 1 x serial port header
12. 1 x Clear CMOS jumper
13. 1 x Trusted Platform Module (TPM) header

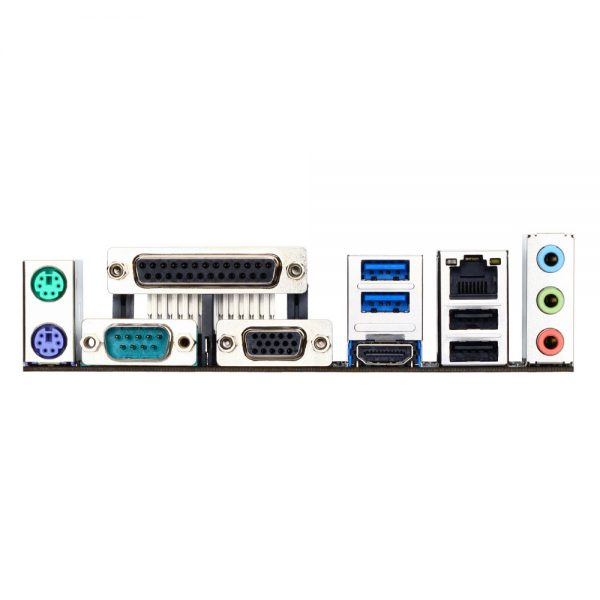

Back Panel Connectors1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x parallel port
4. 1 x serial port
5. 1 x D-Sub port
6. 1 x HDMI port
7. 2 x USB 3.0/2.0 ports
8. 2 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 3 x audio jacks (Line In, Line Out, Mic In)
I/O ControlleriTE® I/O Controller Chip
H/W Monitoring1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS1. 2 x 32 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features1. Support for Q-Flash
2. Support for Xpress Install
3. Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
4. Support for ON/OFF Charge
Bundle Software1. Norton® Internet Security (OEM version)
Operating System1. Support for Windows 10/8.1/8/7
Form Factor1. Micro ATX Form Factor; 24.4cm x 18.0cm
Remark1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
