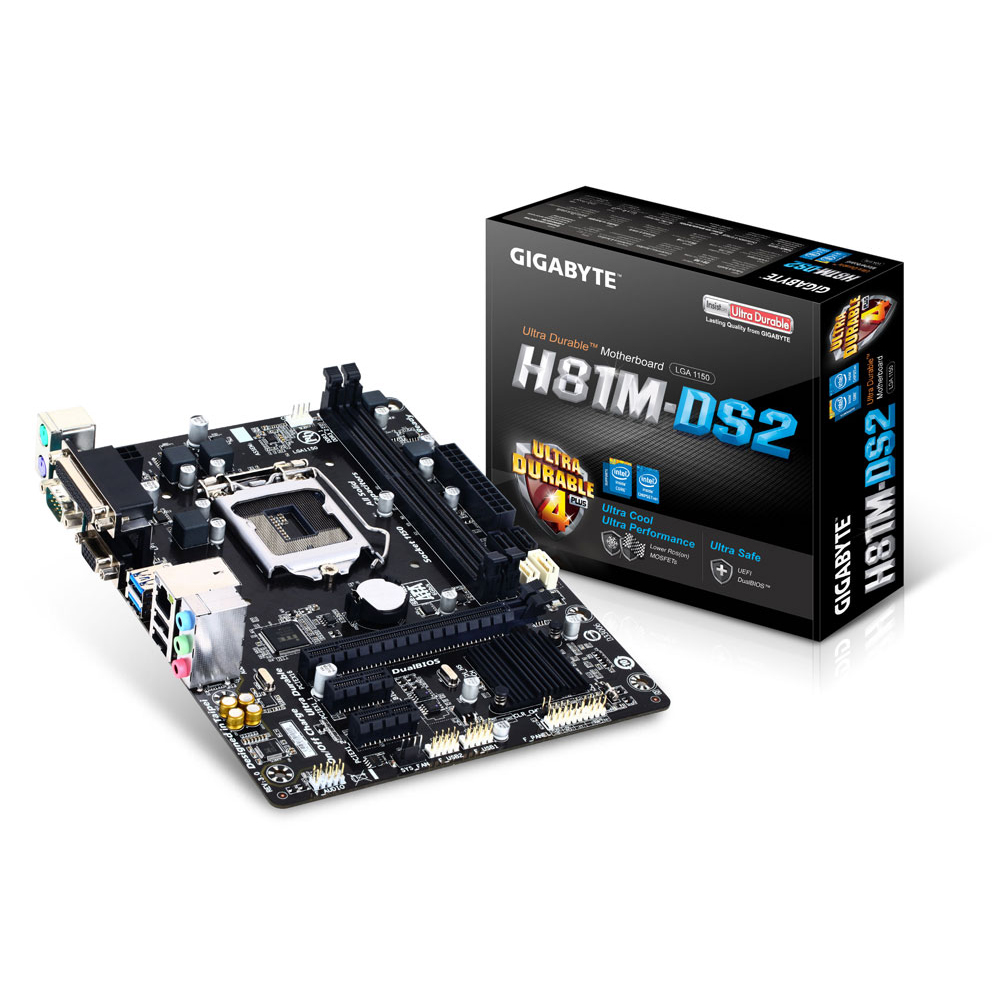

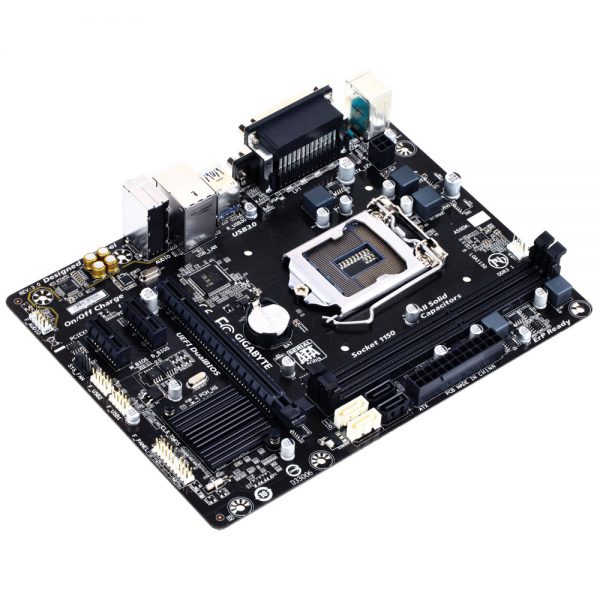

GA-H81M-DS2
- Supports 4th Generation Intel® Core™ processors
- GIGABYTE Ultra Durable™ 4 Plus Technology
- Audio Noise Guard with High Quality Audio Capacitors
- GIGABYTE UEFI DualBIOS™
- GIGABYTE On/Off Charge™ for USB devices
- LAN with high ESD Protection
- LPT, COM, D-SUB port on rear panel
- All solid capacitors design
Description

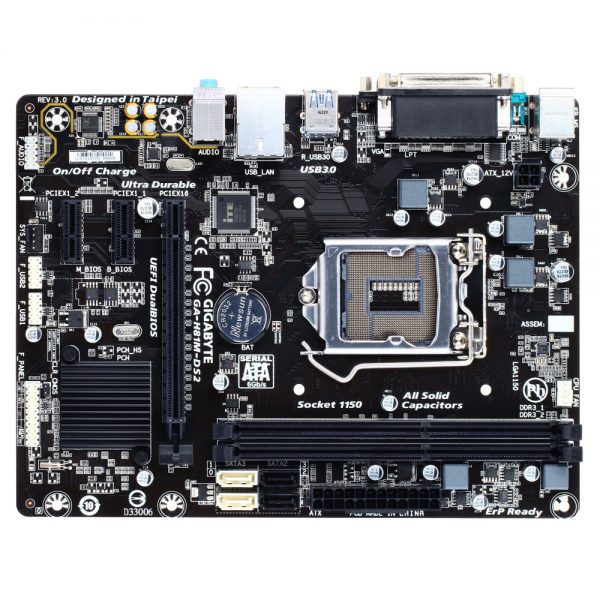

| CPU | 1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package 2. L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Chipset | Intel® H81 Express Chipset |
| Memory | 1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. 2. Dual channel memory architecture 3. Support for DDR3 1600/1333 MHz memory modules 4. Support for non-ECC memory modules 5. Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor - Intel® HD Graphics support: 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200 2. Maximum shared memory of 1 GB |
| Audio | 1. Realtek® ALC887 codec 2. High Definition Audio 3. 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 2. 2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 2.0 standard.) |
| Storage Interface | Chipset: 1. 2 x SATA 6Gb/s connectors (SATA3 0/1) 2. 2 x SATA 3Gb/s connectors (SATA2 2/3) |
| USB | Chipset: 1. 2 x USB 3.0/2.0 ports on the back panel 2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector 2. 1 x 4-pin ATX 12V power connector 3. 2 x SATA 6Gb/s connectors 4. 2 x SATA 3Gb/s connectors 5. 1 x CPU fan header 6. 1 x system fan header 7. 1 x front panel header 8. 1 x front panel audio header 9. 2 x USB 2.0/1.1 headers 10. 1 x Clear CMOS jumper |

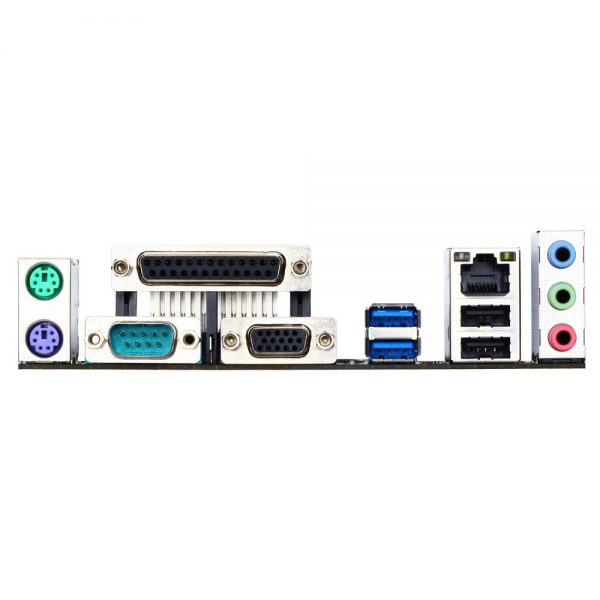

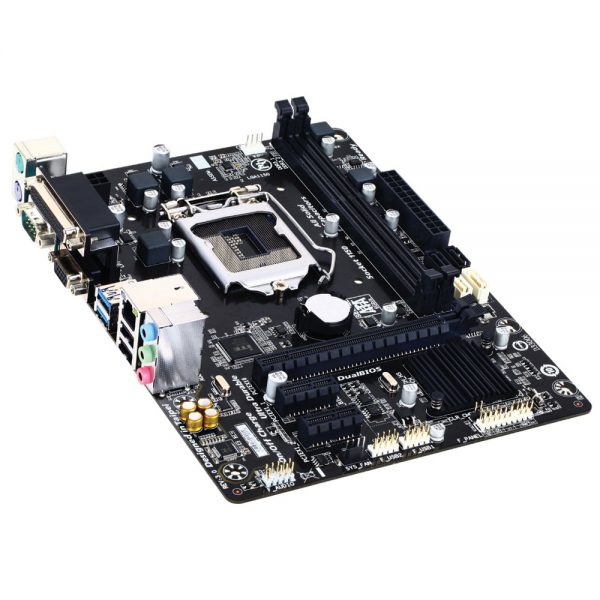

| Back Panel Connectors | 1. 1 x PS/2 mouse port 2. 1 x PS/2 Keyboard port 3. 1 x parallel port 4. 1 x serial port 5. 1 x D-Sub port 6. 2 x USB 3.0/2.0 ports 7. 2 x USB 2.0/1.1 ports 8. 1 x RJ-45 port 9. 3 x audio jacks (Line In, Line Out, Mic In) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | 1. System voltage detection 2. CPU/System temperature detection 3. CPU/System fan speed detection 4. CPU/System overheating warning 5. CPU/System fan fail warning 6. CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 1. 2 x 32 Mbit flash 2. Use of licensed AMI EFI BIOS 3. Support for DualBIOS™ 4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | 1. Support for Q-Flash 2. Support for Xpress Install 3. Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Smart TimeLock Smart Recovery 2 4. Support for ON/OFF Charge |
| Bundle Software | 1. Norton® Internet Security (OEM version) |
| Operating System | 1. Support for Windows 10/8.1/8/7 |
| Form Factor | 1. Micro ATX Form Factor; 22.6cm x 17cm |
| Remark | 1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. 2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
