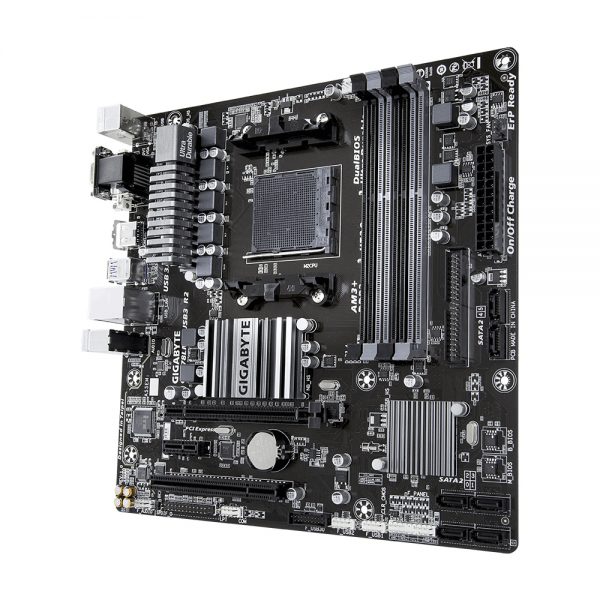

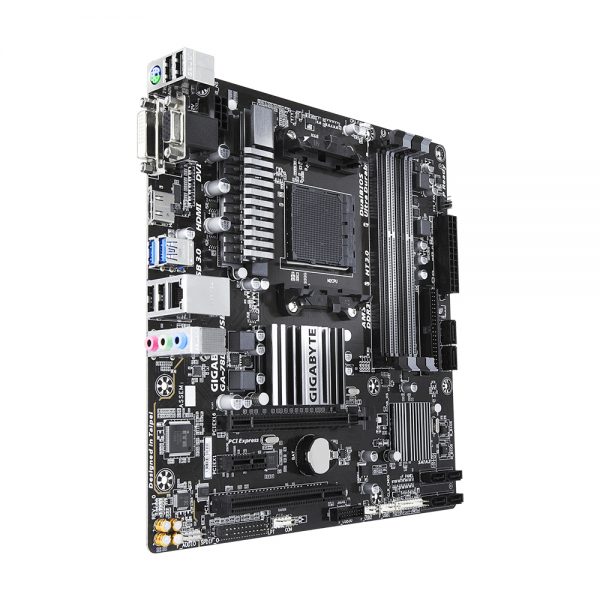

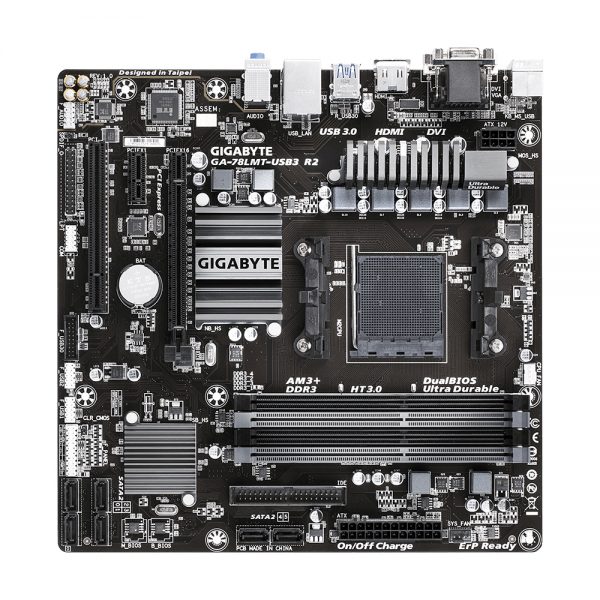

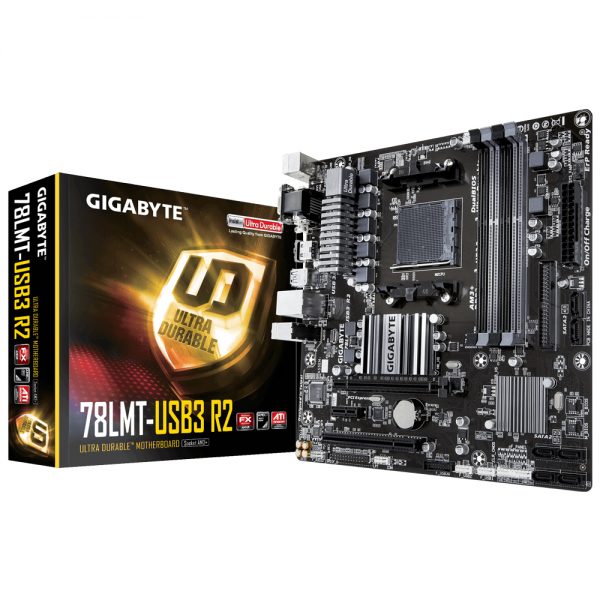

GA-78LMT-USB3 R2
- Supports AMD AM3+ FX / AM3 Phenom™ II, Athlon™ II series Processors
- 4+1 Phase Power Design for AMD 125W CPU support
- Dual Channel Non-ECC Unbuffered DDR3, 2 DIMMs
- Integrated ATI Radeon HD 3000 graphics (DirectX10)
- HDMI, DVI, D-sub Ports for Multi-display support
- 4 USB 3.1 Gen1 with Superspeed Transfer Rates of Up to 5 Gbps
- Audio Noise Guard with High Quality Audio Capacitors
- Hybrid EFI technology with GIGABYTE DualBIOS™
Description
| CPU | AM3+ Socket: Support for AMD AM3+ processor Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor (Please refer "CPU Support List" for more information.) |
| Hyper Transport Bus | HyperTransport™ 3.0 Support up to 5200MT/s |
| Chipset | North Bridge: AMD 760G South Bridge: AMD SB710 |
| Memory | 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for 1600(O.C.)/1333/1066 MHz memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics | North Bridge: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x DVI-D port, supporting a maximum resolution of 1920x1200 * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 1920x1200 * Simultaneous output for DVI-D and HDMI is not supported. Support for DirectX 10 Maximum shared memory of 1 GB |
| Audio | Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (The PCI Express slots conform to PCI Express 2.0 standard.) 1 x PCI slot |
| Storage Interface | South Bridge: 1 x IDE connector supporting ATA-133/100/66/33 6 x SATA 3Gb/s connectors Support for RAID 0, RAID 1, RAID 10, and JBOD |
| USB | Chipset: 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) VIA® VL805 chip: 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 3Gb/s connectors 1 x IDE connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |

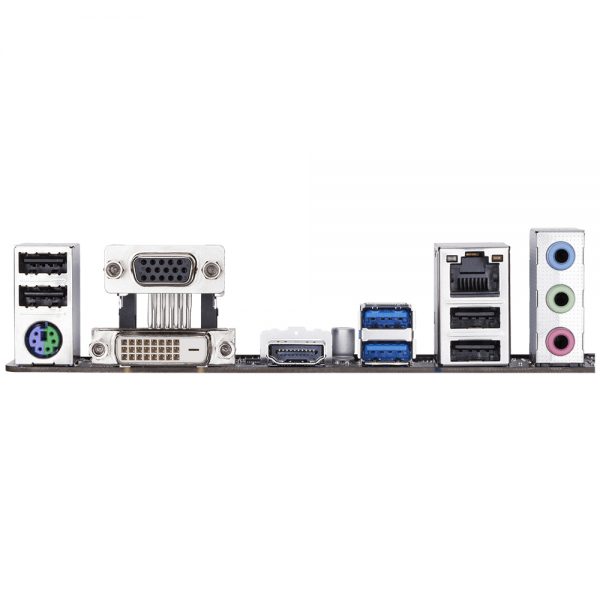

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 2 x 32 Mbit flash Use of licensed AWARD BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b |
| Unique Features | Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for EasyTune * Available functions in EasyTune may differ by motherboard model. Support for Smart Recovery2 Support for Auto Green Support for ON/OFF Charge |
| Bundle Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 7/XP |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Remark | Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
