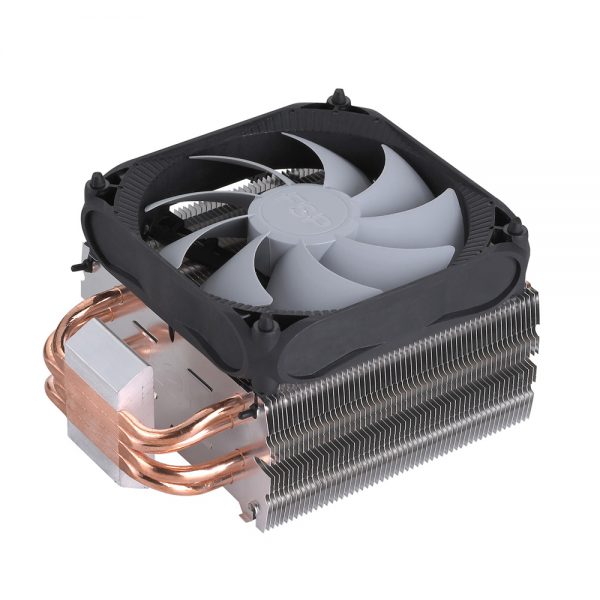

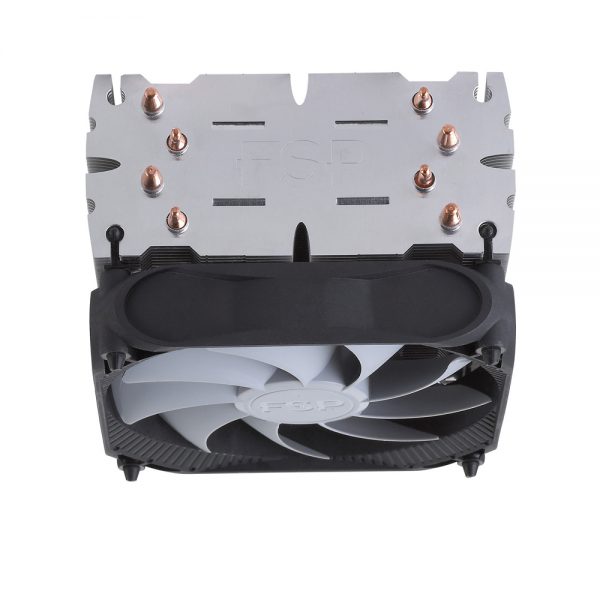

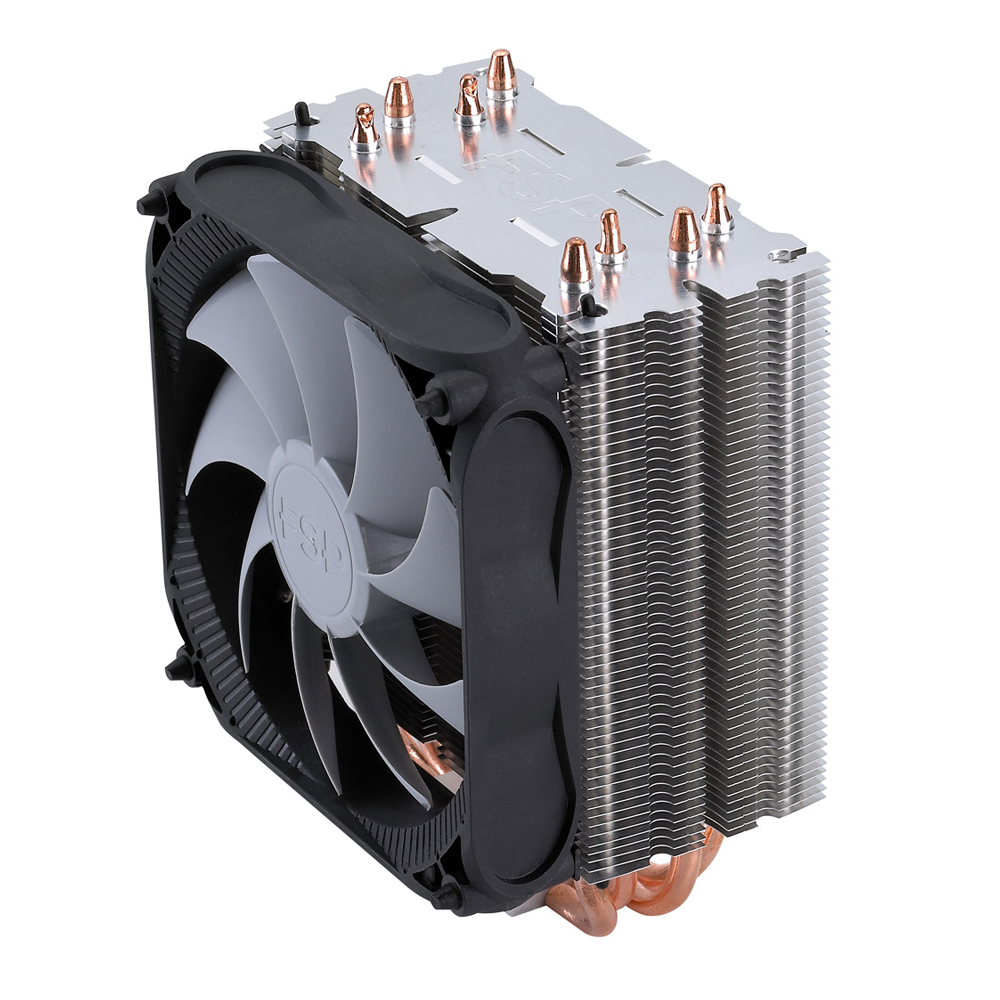

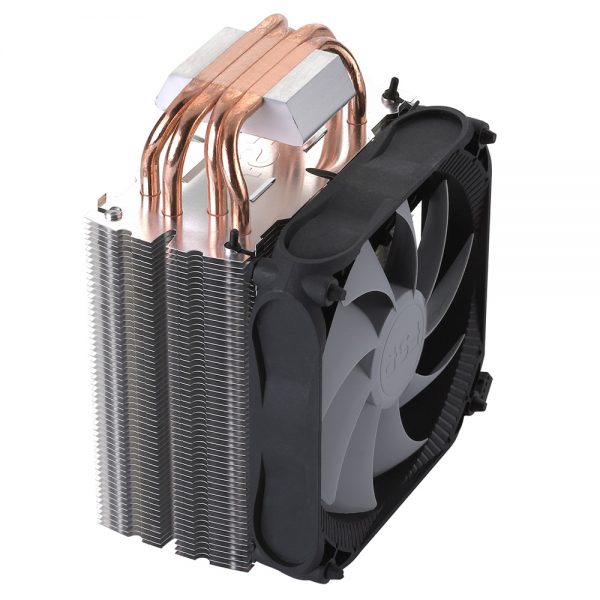

FSP CPU Air Cooler Windale Series come out with two models: Windale 6 and Windale 4. Both of them are featured with CPU direct contact technology which can release CPU heat more efficiently. The 120mm extreme quiet fan enhances better cooling performance. The High-tech 120mm fin design provides optimized cooling effect. They are highly compatible with the latest sockets of Intel and AMD.

  • 6/4 (Windale 6 and Windale 4) direct heat-pipes conduct CPU dice for better cooling performance
  • Optimized fin design
  • Anti-vibration rubber used to minimize movement and noise
  • Universal mounting bracket compatible with the latest sockets of Intel and AMD (AM4)
  • Better cooling performance by CPU direct contact technology
  • Extreme silent 120mm fan


Thermal resistance0.11℃/W
Dimensions (LxWxH)122 x 83 x 158mm
Heatsink MaterialAluminum Alloy
Heat-pipe6mm x 4PCS
Fan Speed600-1600 RPM (PWM) ± 15%
Bearing TypeSleeve Bearing
Fan Air Flow60 CFM ± 10%
Noise Level32 dBA
Rated Voltage12 VDC
