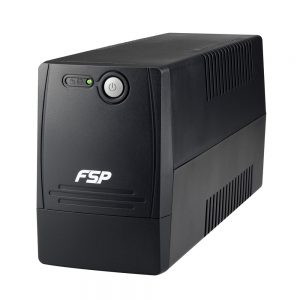

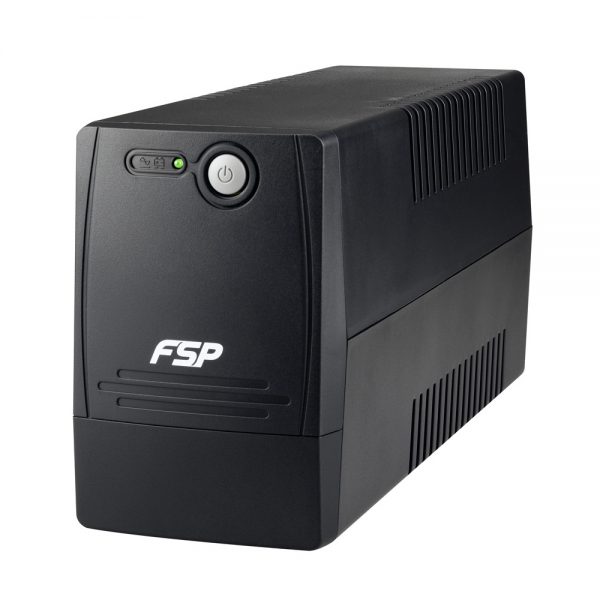

UPS | FSP FP 600

The line-interactive FP Series UPS provides stable and reliable power protection. It is ideal for PC users or small business companies, as well as for small telecom applications.

  • Compact size
  • Excellent microprocessor control guarantees high reliability
  • Boost and buck AVR for voltage stabilization
  • Auto restart while AC is recovering
  • Simulated sine wave
  • Off-mode charging
  • Cold start function
  • Generator compatible (Option)
Category: Tags: ,

Description

ModelFP 600
Input Capacity600 VA / 360 W
Input Voltage Range110/120 VAC or 220/230/240 VAC
Input Frequency Range60/50 Hz (auto sensing)
Output AC Voltage Regulation±10%
Output Frequency60 Hz or 50 Hz ±1 Hz
Output Waveform(Batt. Mode)Simulated Sinewave
Transfer TimeTypical 2-6 ms
Battery Type & Number12 V/7 Ah x 1
Battery Typical Recharge Time4 hours recover to 90% capacity
Weight4.25 kg
NoiseLess than 40dB
Dimensions(L x W x H)279 x 101 x 142 mm
Humidity0-90 % RH @ 0- 40°C (non-condensing)
