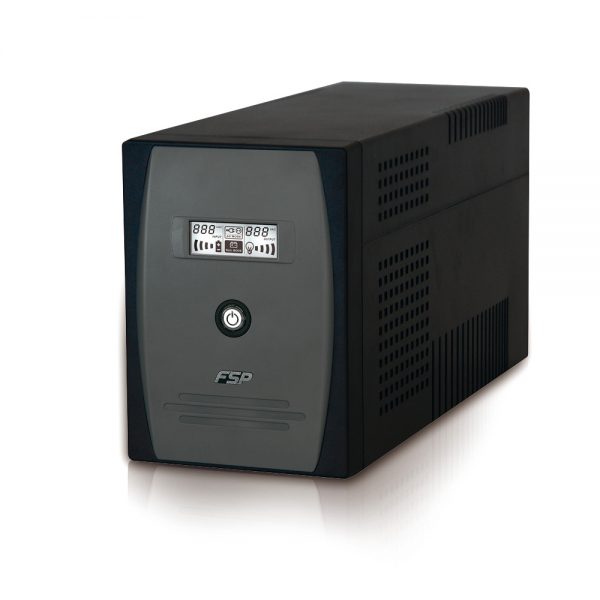

UPS | FSP EP 1.5K

The line-interactive EP UPS provides stable and reliable power protection. It is ideal for PC users or small business companies, as well as for small telecom applications.

  • Compact size
  • Excellent microprocessor control guarantees high reliability
  • Boost and buck AVR for voltage stabilization
  • Auto restart while AC is recovering
  • Simulated sine wave
  • Off-mode charging
  • Cold start function
  • USB/RS-232 communication port and RJ-11 phone protection
Category: Tags: ,

Description

ModelEP 1500
Input Capacity1500 VA / 900 W
Input Voltage Range81-145 VAC / 162 -290 VAC
Input Frequency Range60 /50 Hz (auto sensing )
Output AC Voltage Regulation± 10 %
Output Frequency60 Hz or 50 Hz ± 1 Hz
Output Waveform(Batt. Mode)Simulated Sine Wave
Transfer TimeTypical 2 ~ 6 ms
Battery Type & Number12 V/9 Ah, 2
Battery Typical Recharge Time4-6 hours up to 90% capacity
Weight11.1 kg
NoiseLess than 40 dB
Dimensions(L x W x H)397 x 146 x 205 mm
Humidity0-90 % RH @ 0 - 40°C (non - condensing)
