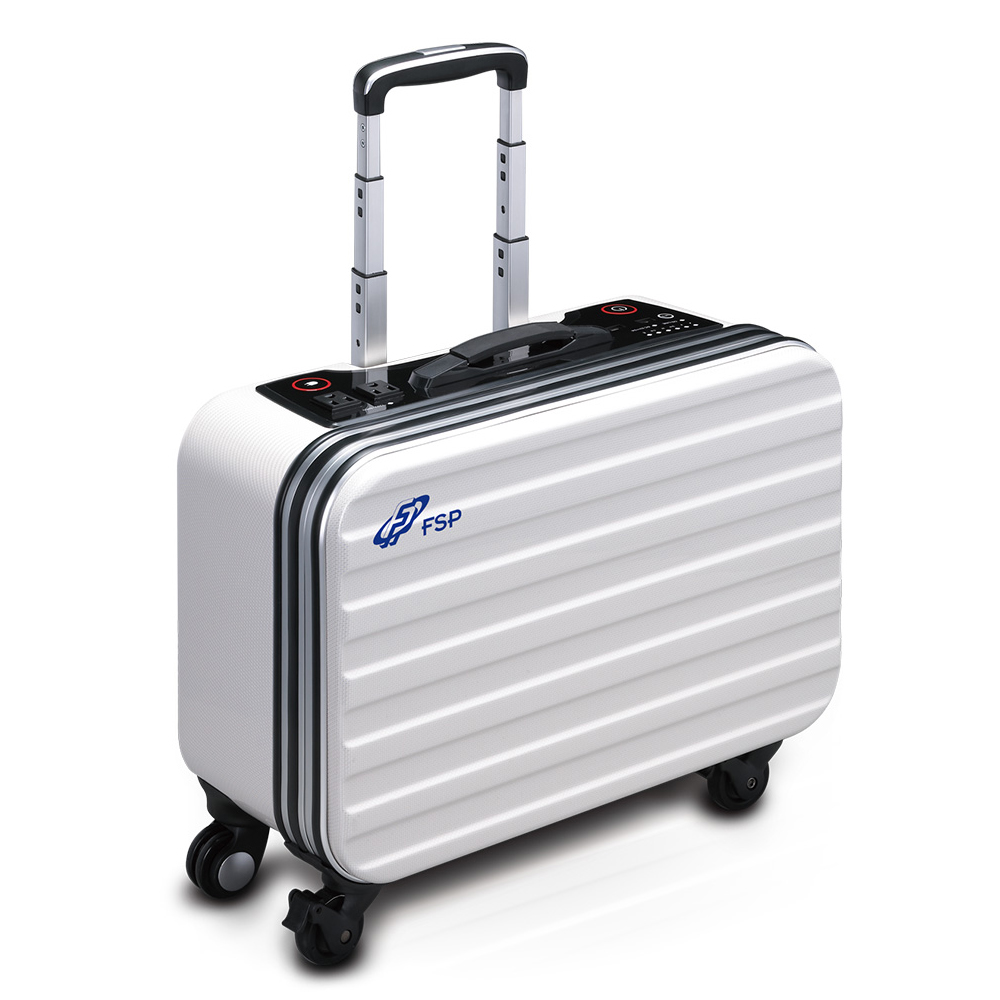

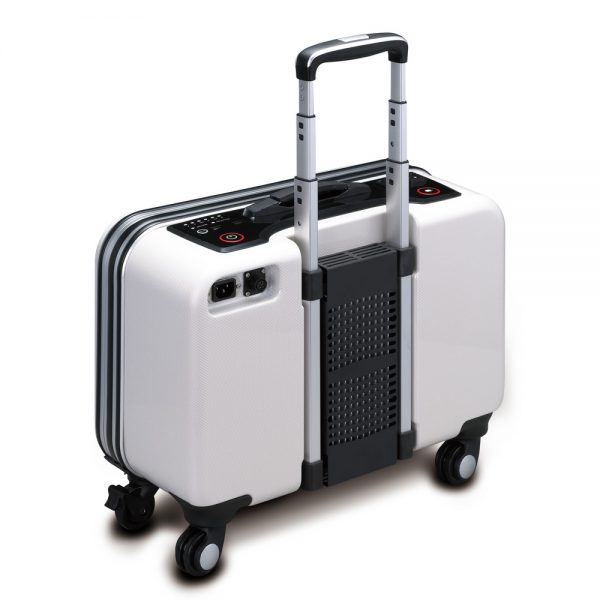

EMERGY | FSP EMERGY 1000

EMERGY 1000 Series are All-in-One System that integrate Li-Ion Battery System, Battery Management System, AC charger, Photovoltaic (PV) charger, DC to AC inverter & System Control, and can be used as a battery back-up power system, an on-line UPS, or be integrated as a battery power subsystem in a modem home energy grid.

  • No diesel, no smoke, no noise, no bad smell and no pollution.
  • Portable electric power and outstanding convenience due to slim design to avoid annoying wires.
  • High power charger (600W) and Inverter (1.5kVA).
  • Very quiet operation (no fan) thanks to high conversion efficiency (>90%) charger & inverter.
  • Pure Sine Wave AC output for precision equipment.
  • Selectable on-line UPS or stand-by UPS mode.
  • Support Green Power (Photovoltaics, PV) charging and environment friendly.
  • Stable & reliable name-brand battery cells from fully automatic production lines.

Description

Rated Energies0.9kWh
BatteryLithium Ion
Input Voltage220-240V, 50-60Hz
Input PV60-110Vdc
Output Voltage220V or 230V, 50Hz or 60Hz, Selectable, 1.5kVA
Output Rating5V/2A (USB)
Transfer Time16 mS typical
UPS Operating ModeStandby or On-Line, Selectable
Dimensions(Lx W x H)425 x 235 x 370 mm
Weight17 kg
Operation Temp.0~40°C / 32°F~104°F
Battery ProtectionsOCP/ODP/OTP/UTP/OCP/SCP
Charger/Inverter/DC ProtectionOCP/OVP/OTP/SCP
Safety ApprovalIEC62133, UN38.3
