Description

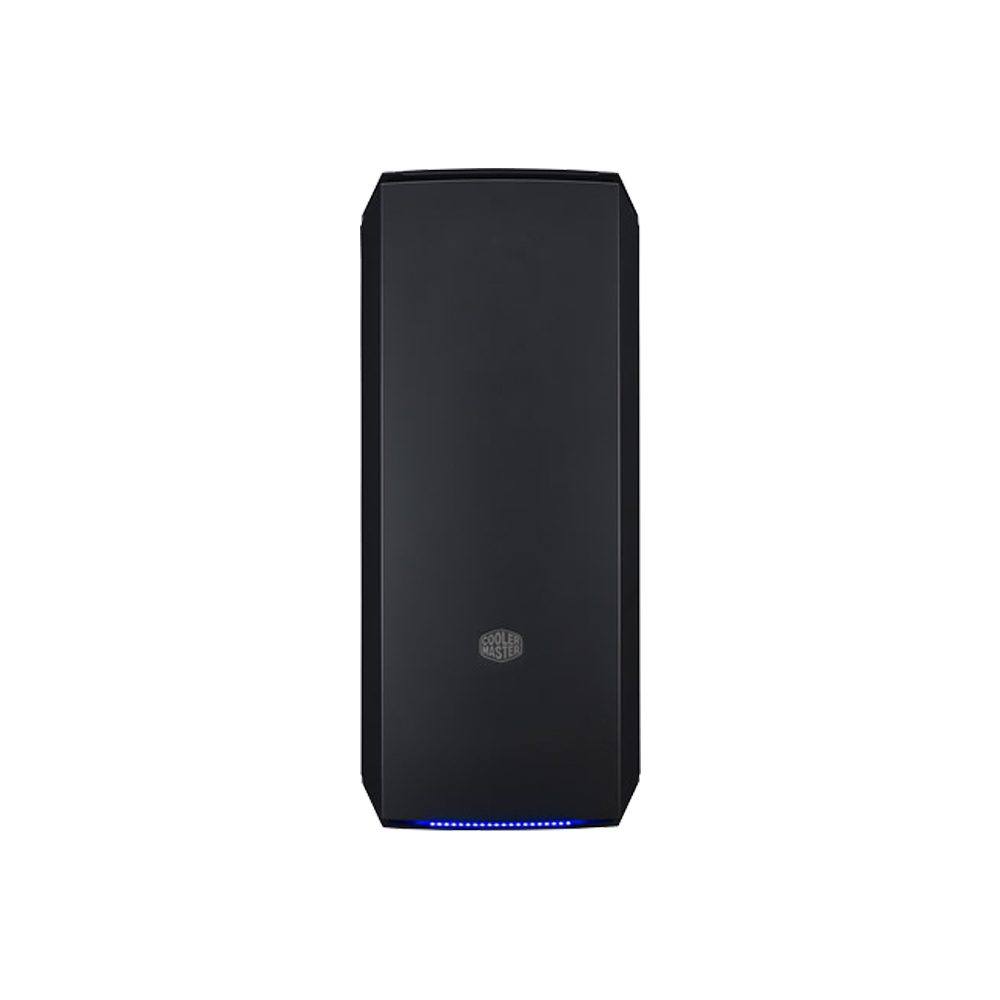

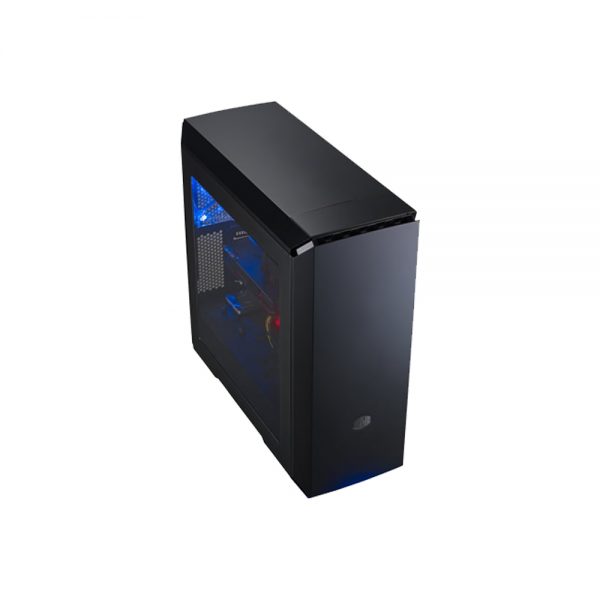

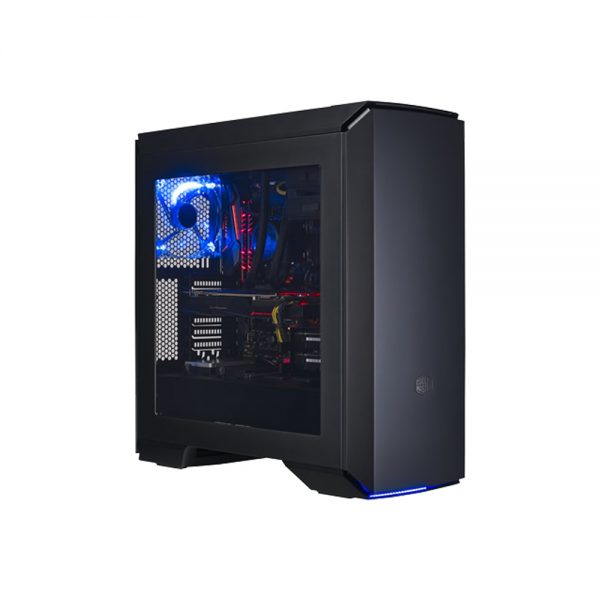

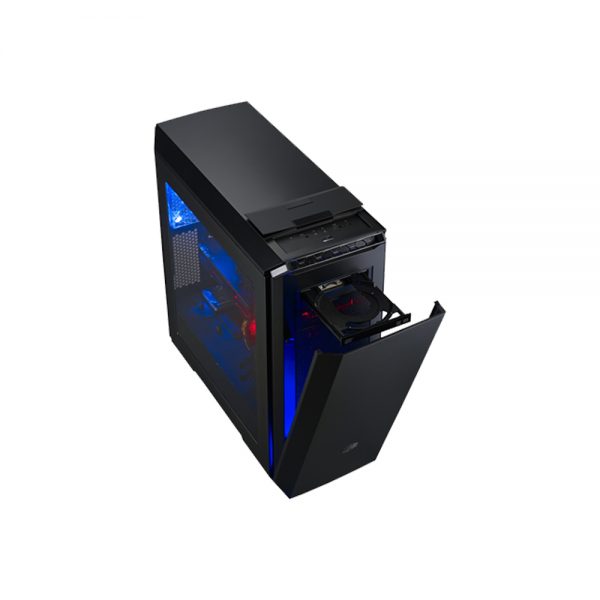

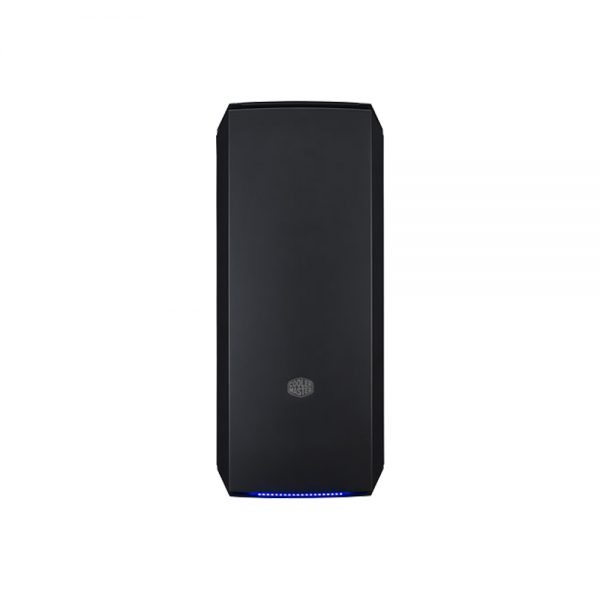

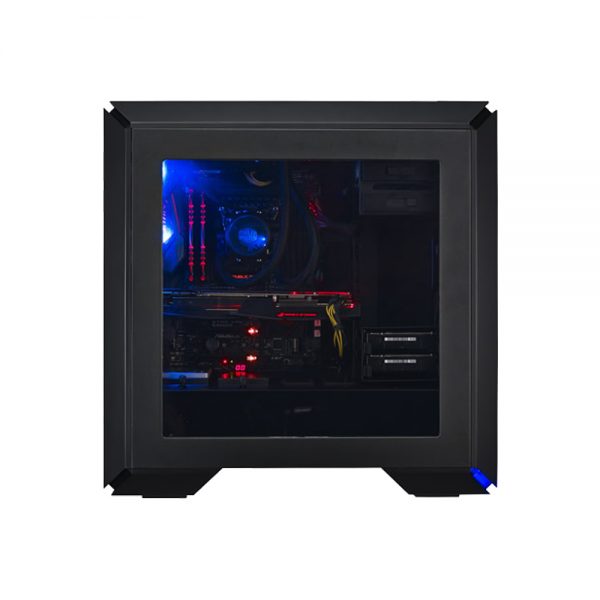

| Product Name | MasterCase Pro 6 |
| Model Number | Blue LED version: MCY-C6P2-KW5N Red LED version: MCY-C6P2-KW5N-01 |
| Available Color | Dark metallic grey exterior with black interior |
| Materials | Steel body, Plastic panels |
| Dimensions (LxWxH) | 544 x 235 x 548mm |
| Net Weight | 11.74 Kg |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 7 |
| Drive Bays | 5.25" 2 Combo 3.5" / 2.5" 5 SSD 2 |
| Electronics | I/O Panel USB 3.0 x 2 Audio in / out |
| Pre-installed Fan(s) | Front 140mm x 2 Rear 140mm Blue / Red LED Fan x 1 |
| Fan Support | Front 120mm x 3 / 140mm x 3 Rear 120mm x 1 / 140mm x 1 Top 120mm x 2 / 140mm x 2 |
| Liquid Cooling Support | Front 240 / 280mm Rear 120 / 140mm Top 240mm (max. 297mm radiator length) |
| Clearance | CPU Cooler 190mm / 7.48" PSU 200mm / 7.87" Graphics Card 412mm / 16.22" (without 3.5" HDD cage) 296mm / 11.7" (with 3.5" HDD cage) |
| Cable Routing | Behind Motherboard Tray 25mm - 35mm |
| Dust Filters | Front, bottom |
| Power Supply | Bottom mount, ATX |
| Extra features | Side Window Panel Front bottom Blue or Red LED Strip x 1 |
| EAN Code | Blue LED version: 4719512054086 Red LED version: 4719512057452 |
| UPC Code | Blue LED version: 884102030185 Red LED version: 884102031083 |
