COOLER | COOLER MASTER MASTER AIR MAKER 8

Be Bold in Your Pursuit of Cold

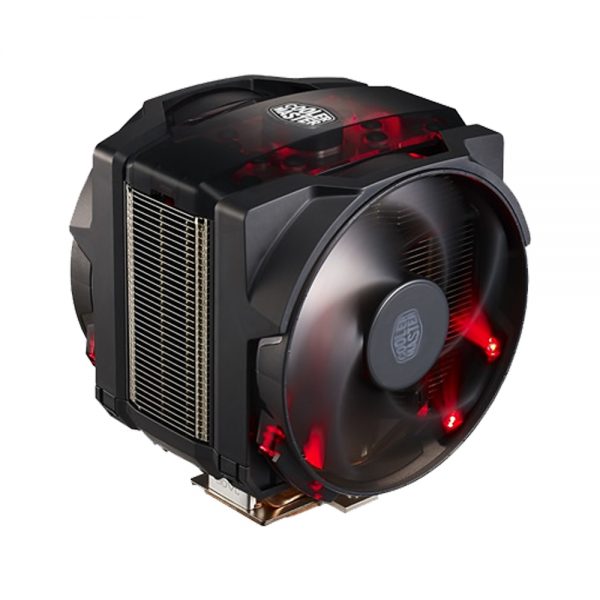

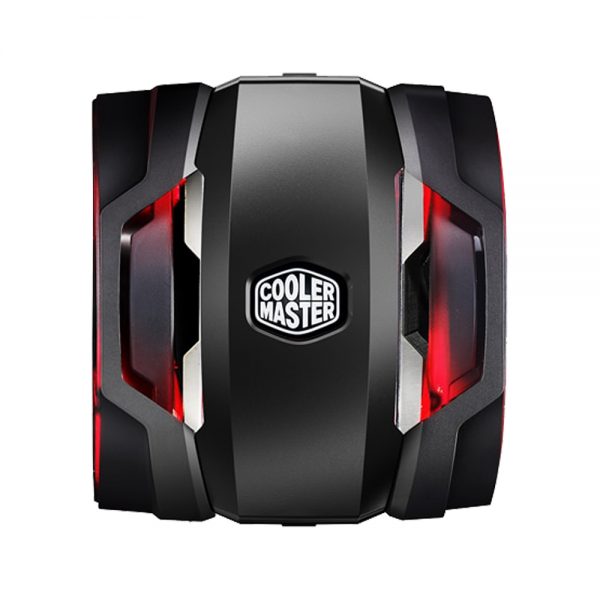

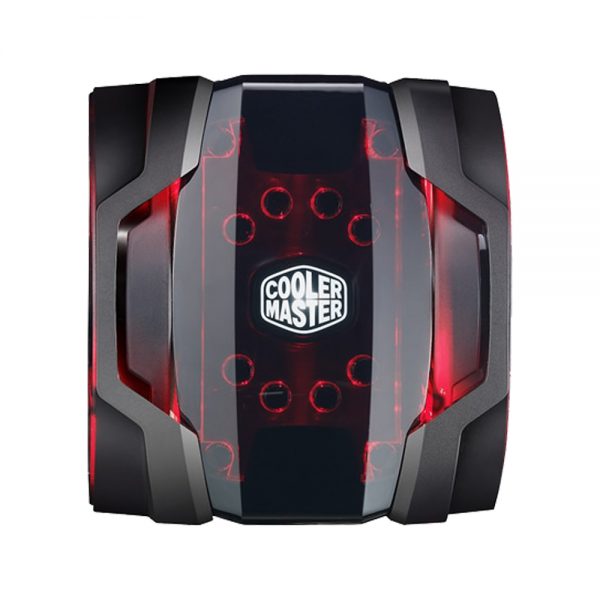

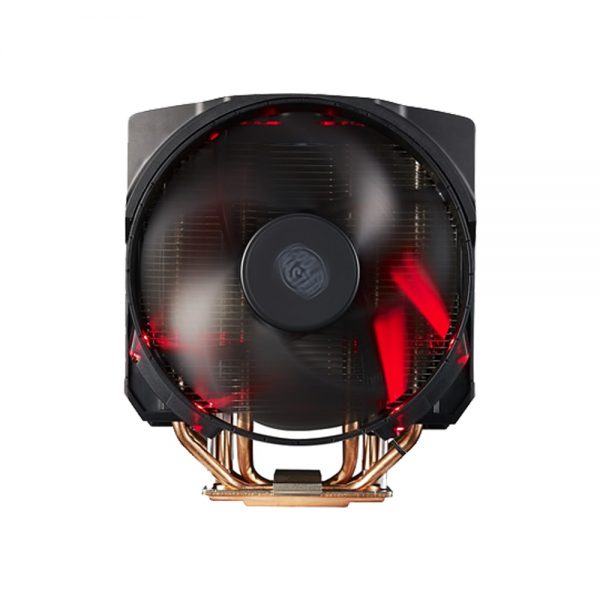

MASTERAIR MAKER 8
The MasterAir Maker 8 has landed. It’s designed for gamers and overclockers who demand ultra-low temperatures, aggressive LED lighting, and total control over their hardware. A seriously sizeable unit bursting at the seams with our newly patented 3DVCTM technology, your system will look amazing and stay rock solid even during intense gaming and overclocking. And yes, you can customize the outlook with two bundled top cover designs, as well as adjust the fan size, model or position for memory or graphics card clearance.

Description

Product NameMasterAir Maker 8
Model NumberMAZ-T8PN-418PR-R1
CPU SocketIntel® LGA 2066 / 2011-v3 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775 socket

AMD® AM4* / AM3+ / AM3 / AM2+ / FM2+ / FM2 / FM1 socket
Dimensions (LxWxH)135 x 145 x 172 mm
Heat Sink Dimensions (LxWxH)78 x 144.5 x 160.5 mm
Heat Sink Material3DVCTM / 8 Heat Pipes / Aluminum Fins
Heat Sink Weight758g
Heat Pipe DimensionsØ6 mm
Fan DimensionsØ 140 x 25 mm x 2pcs
Fan Speed600 – 1,800 RPM ± 10%
Fan Air Flow19.8 – 66 CFM ± 10%
Fan Air Pressure0.24 – 2.2 mmH2O
Fan Life Expectancy160,000 hrs
Noise Level8~24 dBA
Bearing TypeLoop Dynamic Bearing
Connector4-Pin
Rated Voltage12 VDC
Rated Current0.15 A
Power Consumption1.8 W
Fan Weight130 g
Weight1350 g
EAN / UPC Code4719512049198 / 884102027413
Note*AMD AM4 upgrade kit needed, please visit: AMD AM4 Ryzen Compatibility
