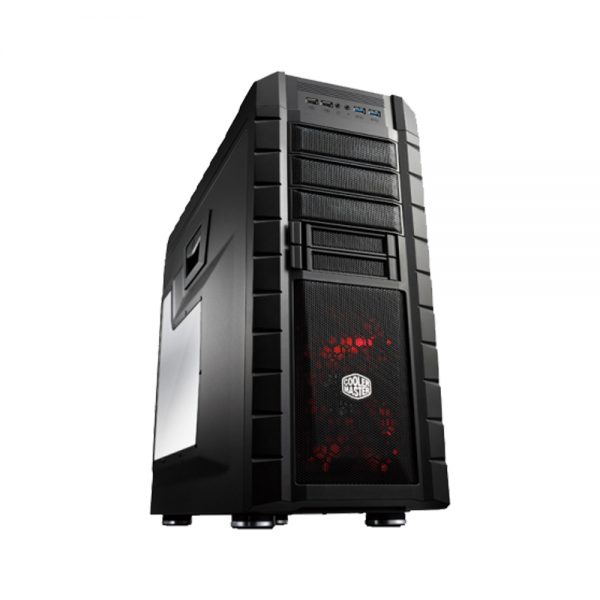

CASING | COOLER MASTER HAF XM (side window panel version)

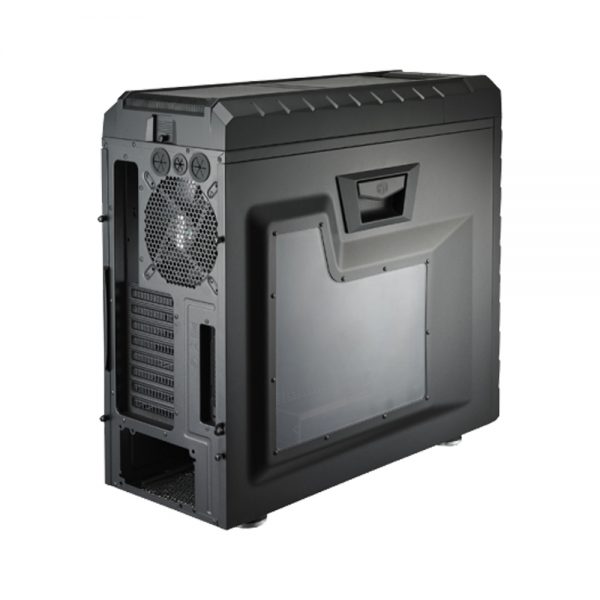

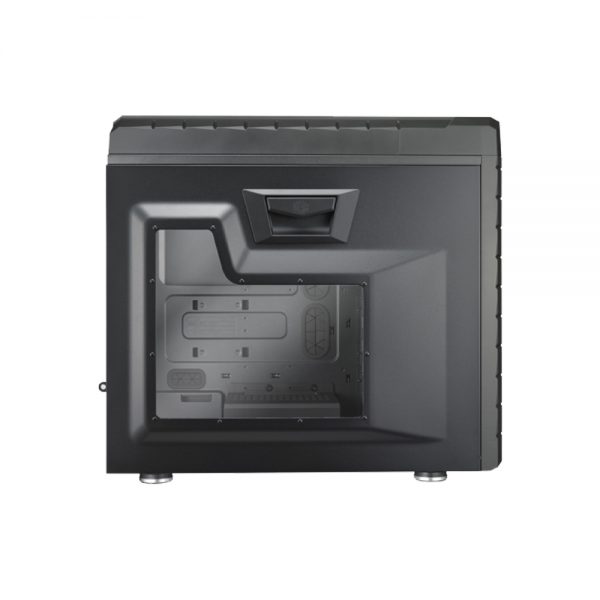

HAF XM – a “mid tower” version of the HAF X, which comes with full tower features for PC enthusiasts. The side window panel offers the best inner view for built system. It supports up to four 200mm fans to keep constant cooling while housing high-end components, such as AMD Radeon HD 7970 and NVIDIA GTX 680. It also supports up to 9 HDDs and 8+1 expansion slots for 3-Way SLI/CF. The smart design of latch on side panel and sliding PSU cable cover ensures the convenience and neatness of system building. The two USB 3.0 Super Speed ports are located on front panel for faster data transfer and easy access.


Available ColorFull Midnight Black
MaterialsAppearance: Mesh, Synthetics; Case body: Steel
Dimension (W x H x D)252 x 530.5 x 579 mm / 9.9 x 20.9 x 22.8 inch
Weight10.5 kg / 23.1 lbs
M/B TypeMicro-ATX, ATX, E-ATX
5.25" Drive Bays3

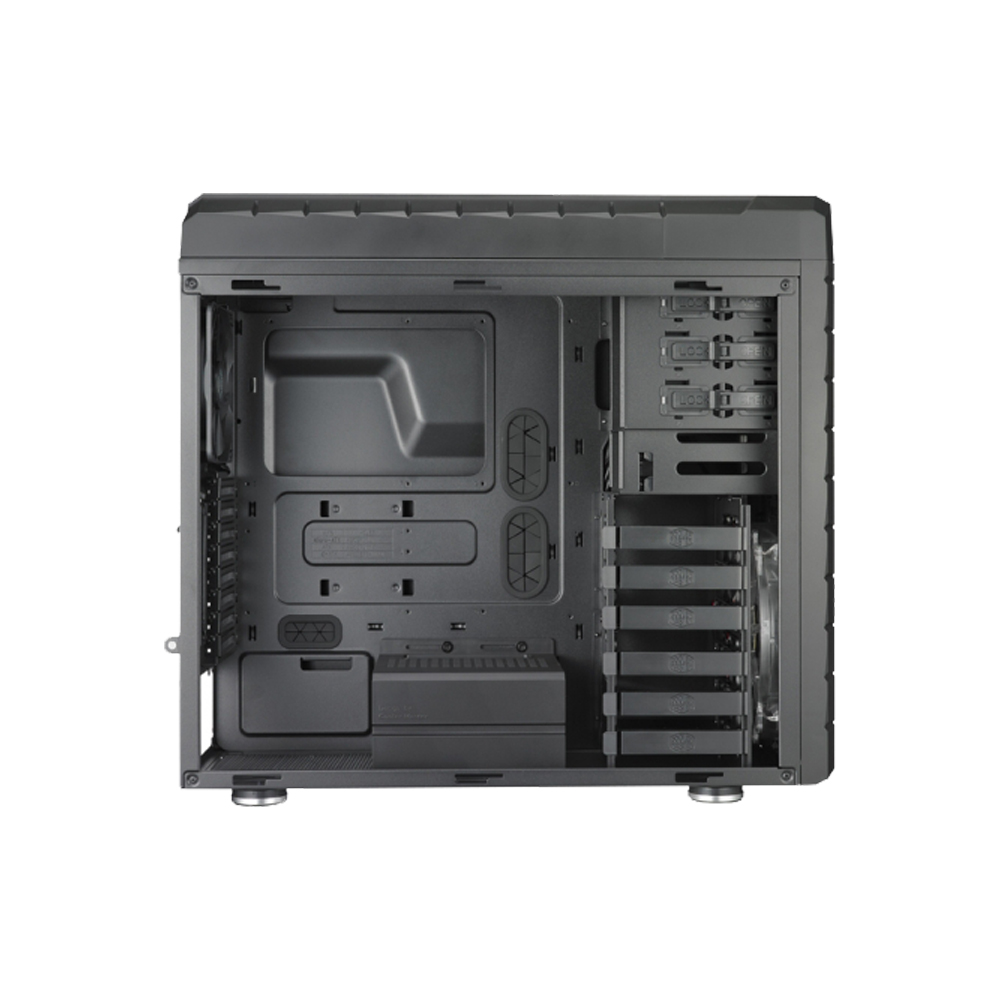

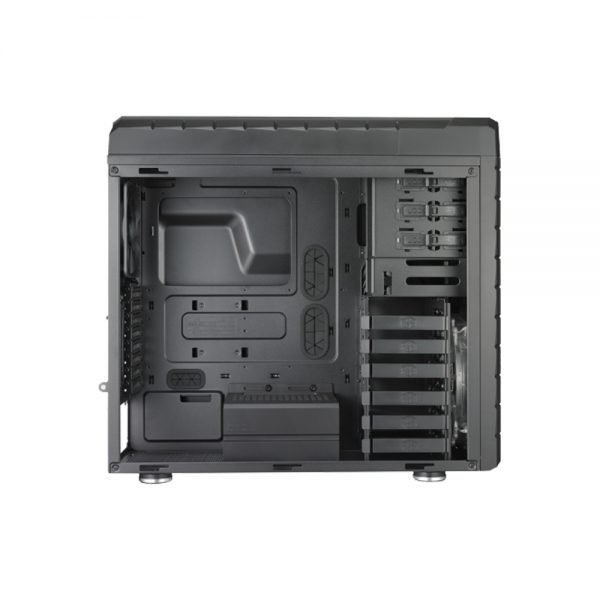

3.5" Drive Bays8 (hidden:6, X-Dock:2)
2.5" Drive Bays9 (6 are converted from 3.5" bays, X-Dock x 2, 1 is behind the M/B tray)

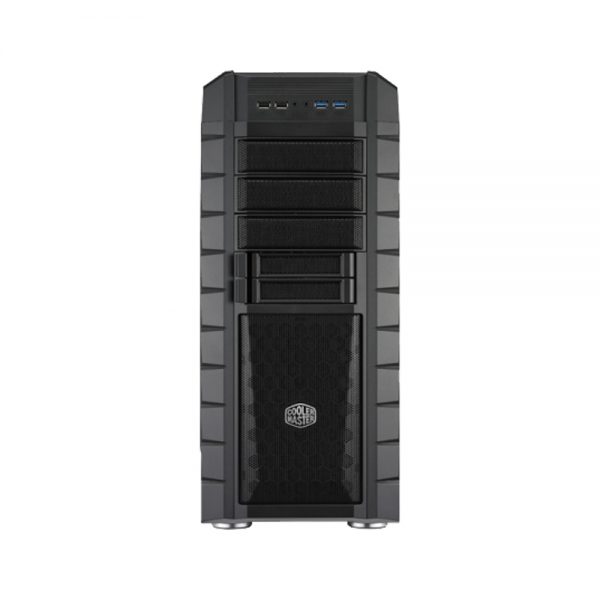

I/O PanelUSB 3.0 x 2 (int.), USB 2.0 x 2, Audio In & Out x 1 (supports HD Audio), LED switch for the front fan
Expansion Slots8+1
Cooling SystemFront: 200mm red LED fan x 1 (or 120mm fan x 2 / 140mm fan x 1)
Top: 200mm fan x 2 (1 is optional; can be swapped to 120/140mm fan x 2)

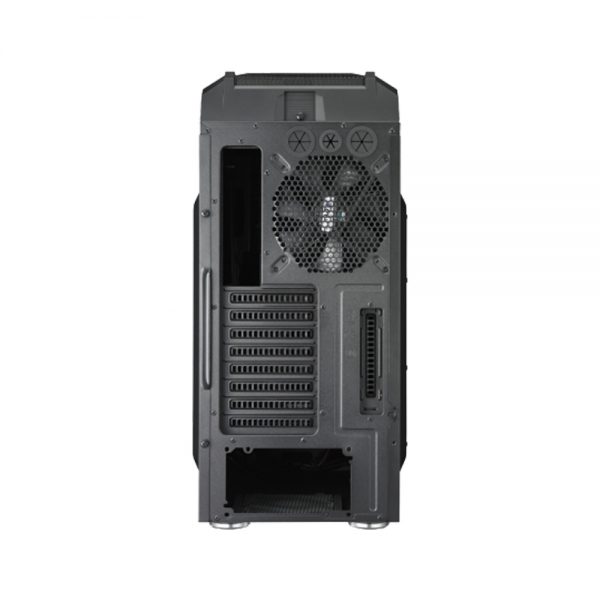

Rear: 140mm fan x 1 (or 120mm fan x 1)
HDD cage: 120x25mm fan x 2 (optional)
Power Supply TypeStandard ATX PS2 / EPS
Maximum CompatibilityVGA card length : 354.0 mm / 13.9 inch (with HDD cage)
463.0 mm / 18.2 inch (without HDD cage)
CPU cooler height: 196.0 mm / 7.7 inch
