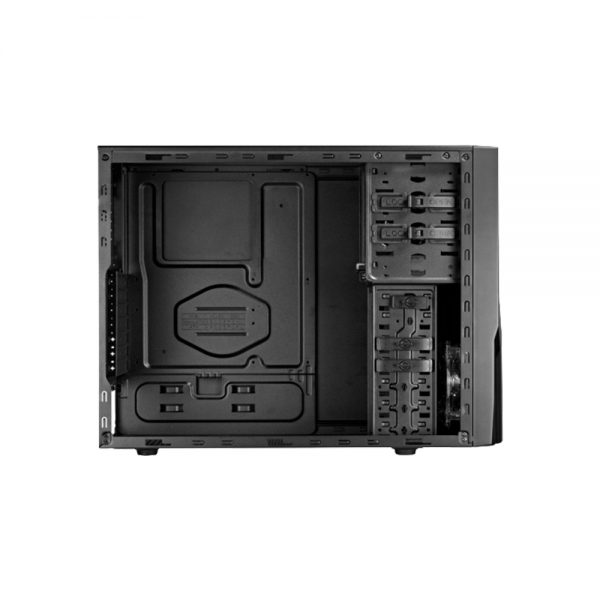

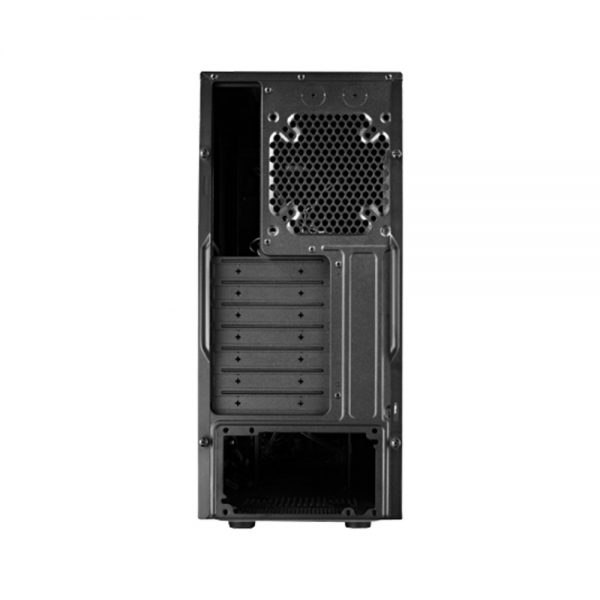

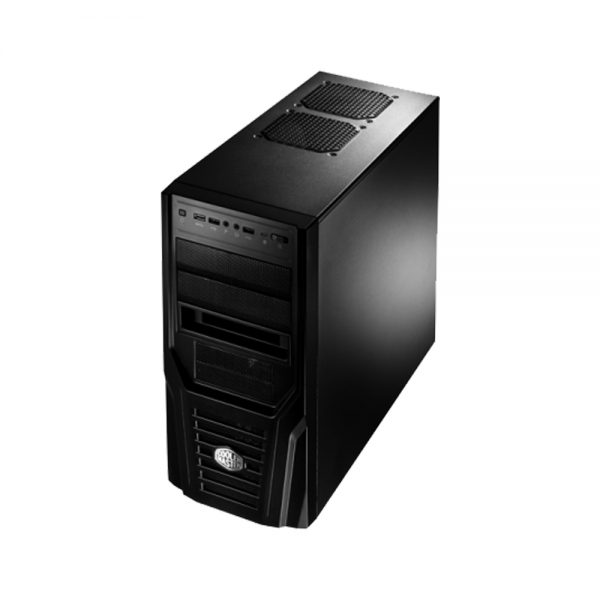

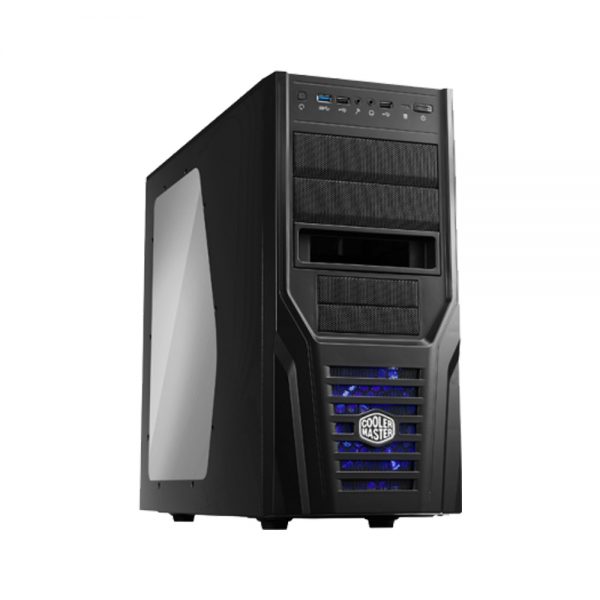

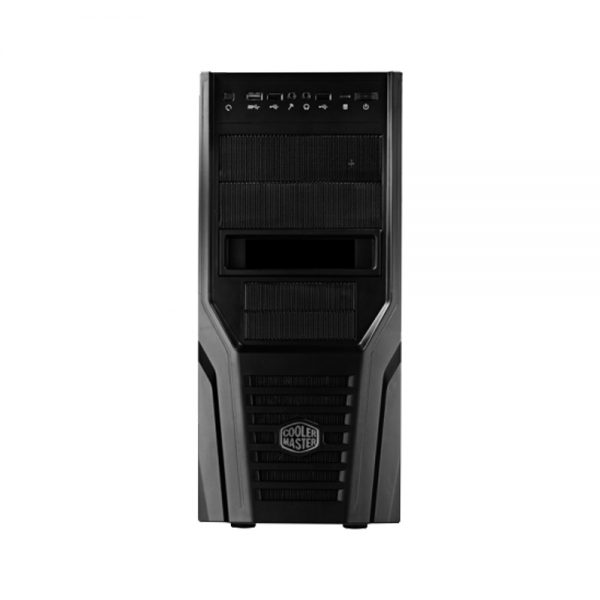

CASING | COOLER MASTER ELITE 431 PLUS
- Front 120mm blue LED fan for improved cooling performance
- Tool-free mechanical design for quick assembly and maintenance

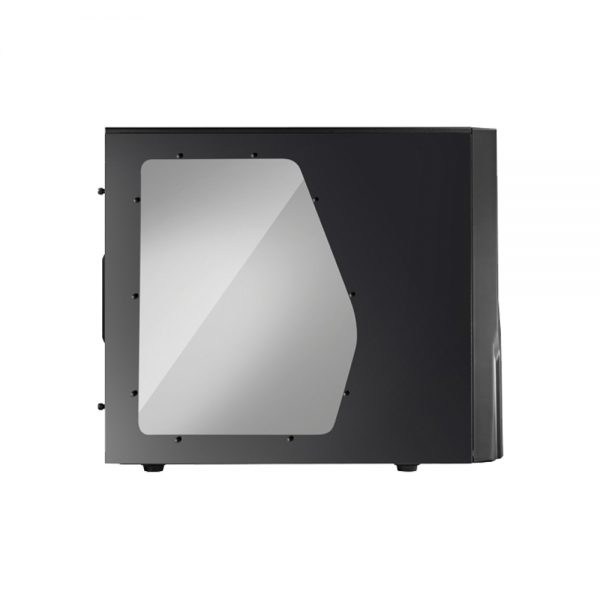

- Large side panel window provides the best inner view for components
- One super speed USB 3.0 port for faster file transfer and phone/tablet charging
- Supports high-end graphics cards up to 315mm/12.4″ in length, including AMD HD 7970 and NVIDIA GTX 690
Description
| Model | RC-431P |
| Available Color | Full Black |
| Materials | Steel body, ABS plastic |
| Dimension (W x H x D) | 192 x 427 x 499 mm / 7.6 x 16.8 x 19.6 inch |
| Weight | 5.0 kg / 11.0 lbs |
| M/B Type | Micro-ATX, ATX |
| 5.25" Drive Bays | 3 (exposed; w/o X-Docking) |
| 3.5" Drive Bays | 2 (exposed), 5 (hidden) |
| 2.5" Drive Bays | 1 (exposed; converted from one 5.25” bay) |
| I/O Panel | USB 3.0 x 1 (int.) , USB 2.0 x 2, Mic x 1 , Audio x 1 |
| Expansion Slots | 7 |
| Cooling System | Front: 120mm blue LED fan x 1, or 140mm fan x 1(optional) Top: 120mm fan x 2 (optional) Rear: 80/90/120mm fan x 1 (optional) Bottom: 80/90/120mm fan x 1 (optional) |
| Power Supply Type | Standard ATX PS2 / EPS 12V |
| Maximum Compatibility | VGA card length: 315mm / 12.4 inch CPU cooler height: 192mm / 7.6 inch |
