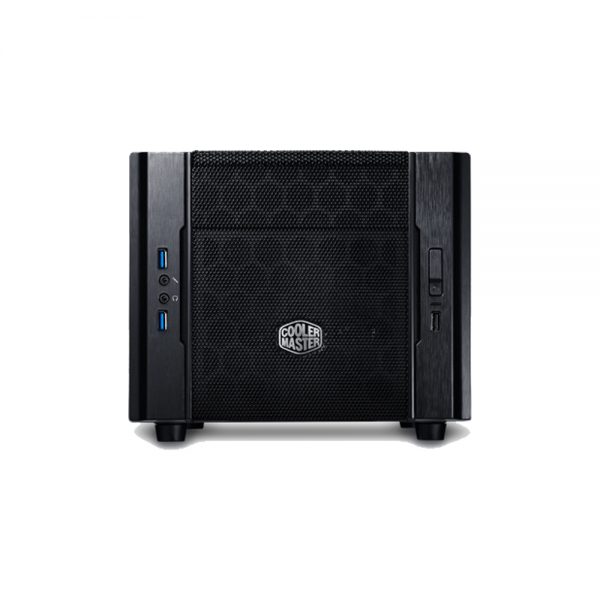

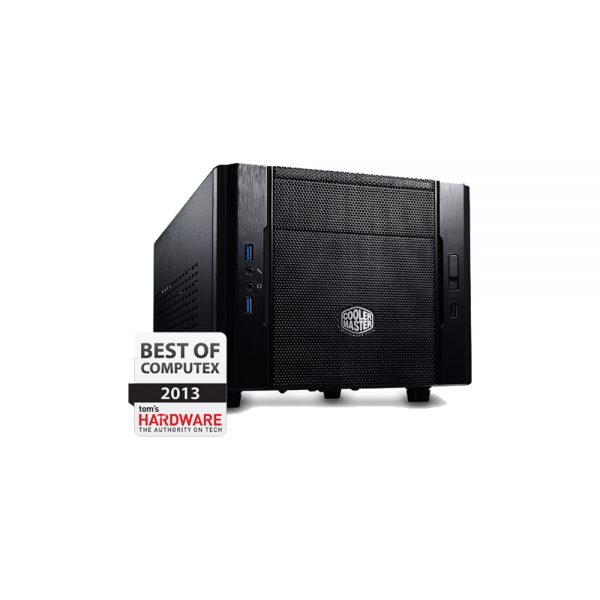

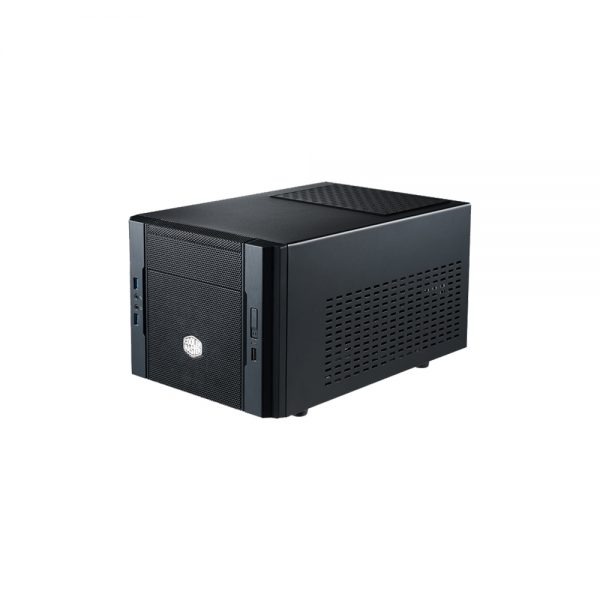

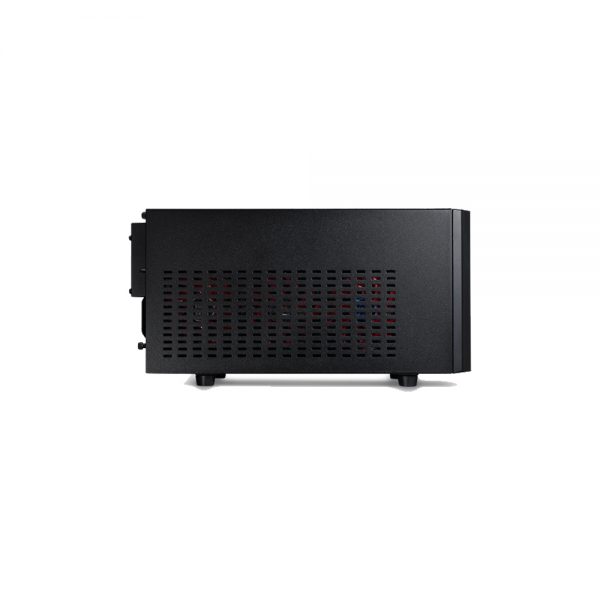

CASING | COOLER MASTER ELITE 130
- Unprecedented airflow for a Mini-ITX case with front mesh panel and vents on the top and side panels
- Dual Super Speed USB 3.0
- Supports a 120mm radiator in the front
- Supports standard length ATX PSU
- Supports ultra high-end graphics card up to 343mm / 13.5 inch, such as AMD HD7990 and NVIDIA GTX690

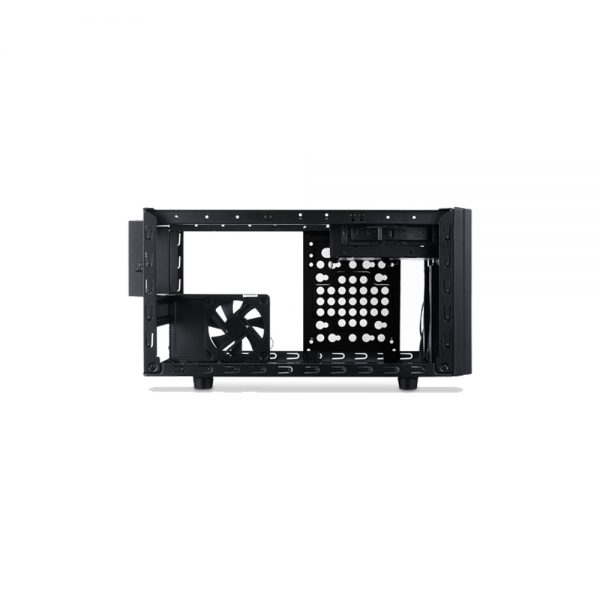

- Ample storage – up to 1 ODD / 3 HDDs / 5 SSDs:
- ODD x 1 + HDD x 2 + SSD x 1 + HDD x 3 + SSD x 1 + HDD x 2 + SSD x 3 + HDD x 1 + SSD x 4 + SSD x 5
Description
| Model Number | RC-130-KKN1 |
| Available Color | Midnight Black |
| Materials | Appearance: polymer front mesh panel Case body: Steel alloy |
| Dimensions (W x H x D) | 240 x 207.4 x 398.5 mm / 9.4 x 8.2 x 15.7 inch |
| Net Weight | 3.1 kg / 6.8 lbs |
| M/B Type | Mini-ITX |
| 5.25" Drive Bays | 1 |
| 3.5" Drive Bays | 3 (1 from 5.25” drive bay) |
| 2.5" Drive Bays | 5 (3 from 5.25" drive bays, 1 from the side bracket, 1 from the bottom) |

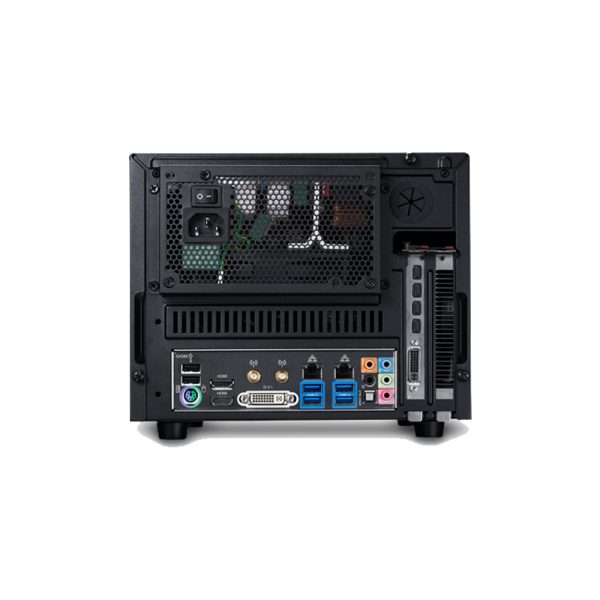

| I/O Panel | USB 3.0 x 2, USB 2.0 x 1, Audio In & Out |
| Expansion Slots | 2 |
| Cooling System | Front: 120mm fan x 1 (installed) Side: 80x15mm fan x 1 (installed) / 20 CFM |
| Power Supply Type | Standard ATX PS2 |
| Maximum Compatibility | VGA card length: 343mm / 13.5 inch CPU cooler height: 65mm / 2.5 inch PSU length: 180mm/ 7.1 inch (w/ less cable management) 142mm / 5.6 inch (w/ full cable management) |
