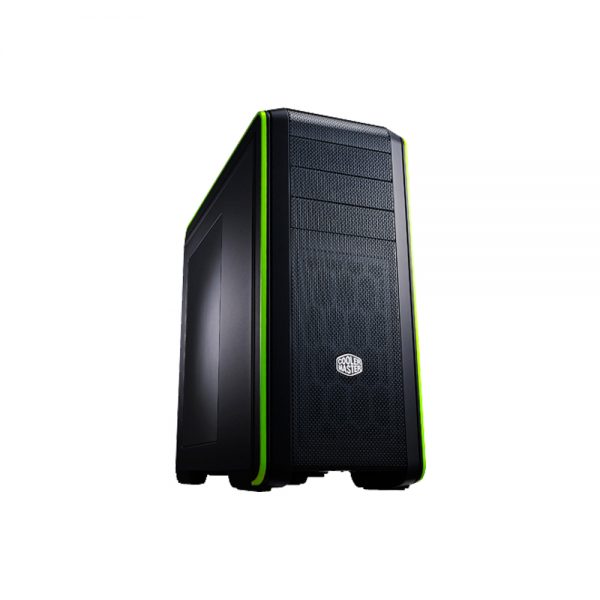

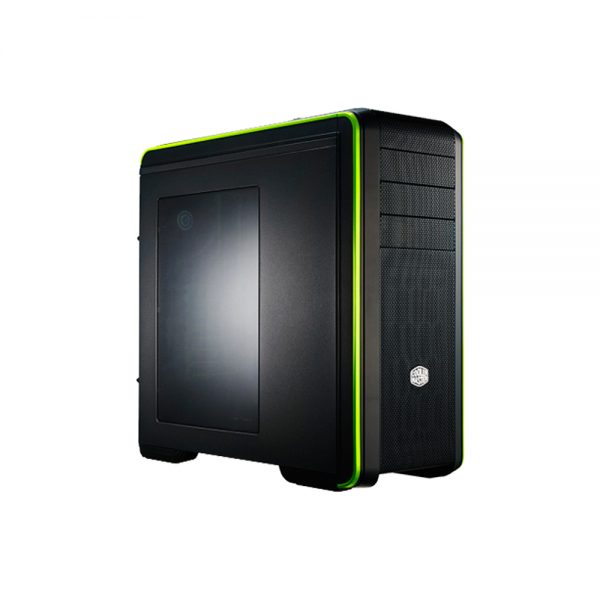

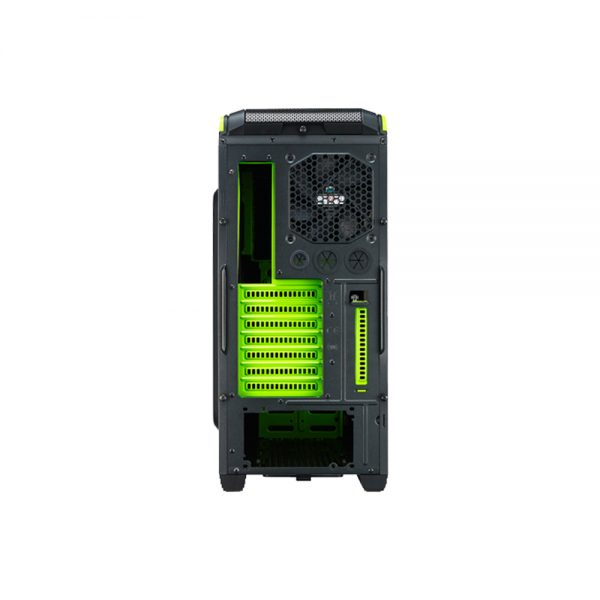

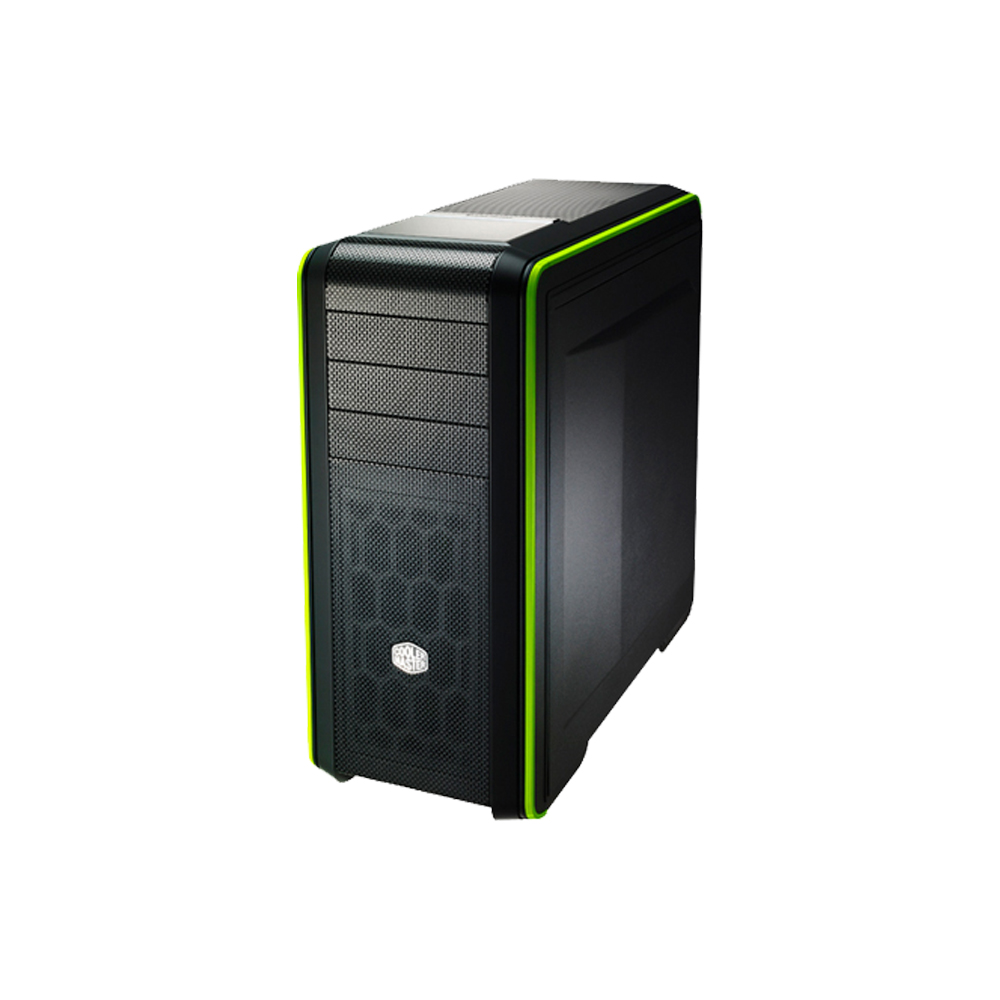

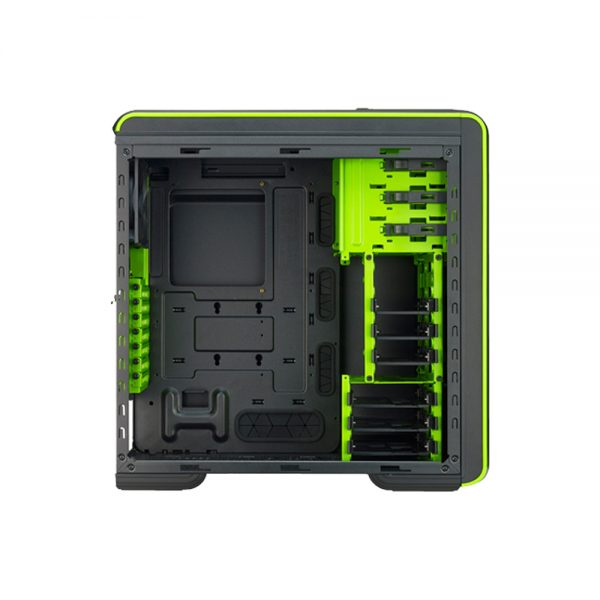

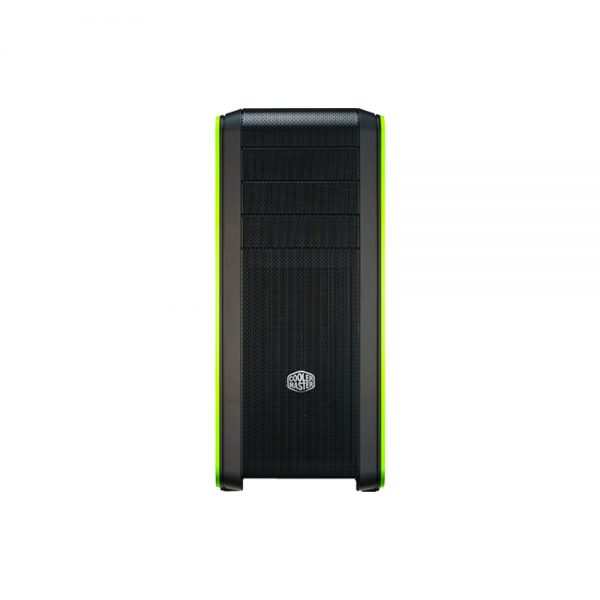

CASING | COOLER MASTER CM 693 GREEN COLOR
CM 690 III
- Full mesh on the front panel and top with large vents on the side panel for superior cooling
- 3 designated places for radiators: 240mm: top, front; 120mm: rear
- Supports up to three 200mm large fans for extreme airflow with support for up to 9 total fans (KKN1: 9 fans, KWN1: 7 fans, WWN1-V2: 7 fans)
- New ODD tool-less design “EZ tray” for quick installation
- Supports up to 10 SSDs (4 in the removable HDD/SSD combo cage, 1 behind the M/B tray) and 7 HDDs with HDD/SSD combo trays
- Dual Super Speed USB 3.0
- High-end component support – long graphics cards up to 423mm and tall CPU coolers up to 171mm
- Multiple removable dust filters (top, front, PSU) for improved system maintenance
- Top compartment with cover to place personal belongings
Description
| Model Number | Black: CMS-693-KKN1 CMS-693-KWN1 (with side panel window) Green: CMS-693-GWN1 (with side panel window) White: CMS-693-WWN1-V2 |
| Available Color | Midnight Black, Green White |
| Materials | Polymer, mesh front bezel |
| Dimensions (W x H x D) | 230 x 507 x 502 mm / 9.1 x 20.0 x 19.8 inch |
| Net Weight | 8.9 kg / 19.6 lbs 8.7 kg / 19.2 lbs |
| M/B Type | microATX, ATX |
| 5.25" Drive Bays | 3 (exposed) |
| 3.5" Drive Bays | 7 (hidden) 3 (hidden) |
| 2.5" Drive Bays | 10 (hidden; 7 from the HDD/SSD combo cages, 1 under the ODD cage, 1 behind the M/B tray,1 at the bottom) 5 (hidden); 3 from the HDD/SSD combo cages, 2 from M/B tray, or 5.25" bay, or bottom Panel |
| I/O Panel | USB 3.0 x 2, USB 2.0 x 2, Audio In & Out (supports AC97 / HD Audio) USB 3.0 x 2, USB 2.0 x 2, Audio In & Out (supports HD Audio) |
| Expansion Slots | 7+1 |
| Cooling System | Top: 120/140mm fan x 2, or 200mm fan x 1 (optional) Front: 200mm fan x 1 (installed), or 120/140mm fan x 2 , 180mm fan x 1(optional) Rear: 120mm fan x 1 (installed) Side: 120mm fan x 2 or 180/200mm fan x 1(optional) - for CMS-693-KKN1 (standard version) only Bottom: 120mm fan x 1 (optional) HDD cage: 120mm fan x 1 (optional) Top: 120/140mm fan x 2, or 200mm fan x 1 (optional) Front: 120/140mm fan x 2 (installed 1 x 140mm fan), or 200/180mm fan x 1 (optional) Rear: 120mm fan x 1 (installed) Bottom: 120mm fan x 1 (optional) |
| Power Supply Type | Standard ATX PS2 Standard ATX PS2 (optional) |
| Maximum Compatibility | VGA card length: 423 mm / 16.6 inch (without cage) 312mm / 12.3 inch (with SSD cage) 280mm / 11.0 inch (with HDD cage) CPU cooler height: 171mm / 6.7 inch VGA card length: 423 mm / 16.6 inch (w/o cage) CPU cooler height: 171mm / 6.7 inch |
