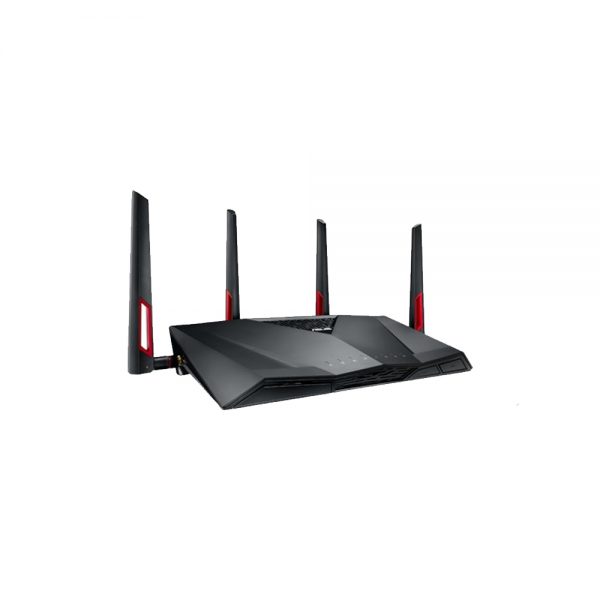

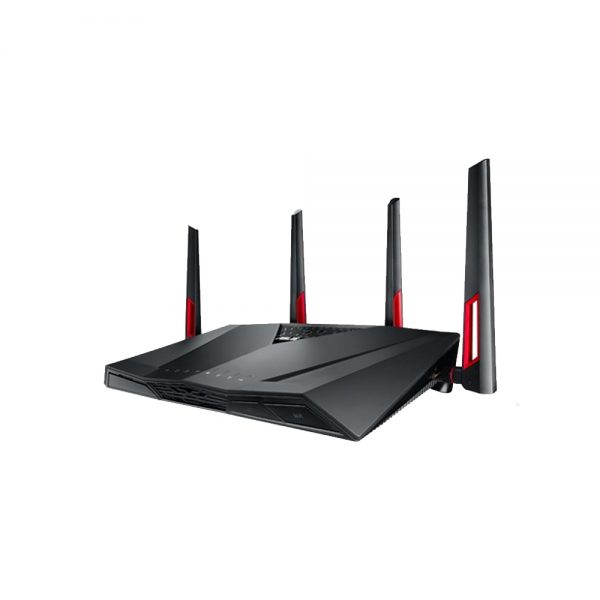

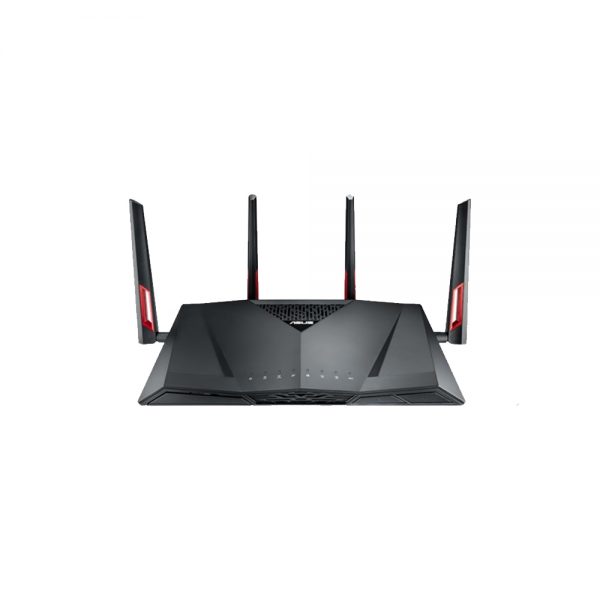

Wireless | ASUS RT-AC88U

AC3100 Dual Band Gigabit WiFi Gaming Router with MU-MIMO, supporting AiProtection network security by Trend Micro, AiMesh for mesh wifi system and WTFast game accelerator

  • Ultra-fast 802.11ac dual-band Wi-Fi router boosts speeds up to 3167 Mbps for low-latency online gaming, smooth 4K UHD video playback and extremely fast file-sharing.
  • 4×4 antenna design with AiRadar universal beamforming for unrivaled Wi-Fi range.
  • Intuitive ASUS Router App lets you control your network anywhere, without needing to boot up a PC.
  • Exclusive built-in game accelerator from WTFast® lets you enjoy smooth gameplay in supported multi-player online games.
  • AiProtection with Trend Micro™ for triple-strength network security, plus robust Parental Controls and privacy protection.
  • 8 Gigabit LAN ports for extensive connectivity.
  • Link aggregation for up to 2Gbps wired network speeds, so more devices can enjoy faster access.
  • Revolutionary MU-MIMO technology can connect multiple MU-MIMO-compatible clients at each device’s maximum speed simultaneously.
  • AiMesh Supported – Connect to other compatible ASUS routers to create a powerful and flexible whole-home Wi-Fi network

Description

Network StandardIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
Product SegmentAC3100 ultimate AC performance : 1000+2167 Mbps
CoverageVery large homes
Data Rate802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 600 Mbps
802.11ac : up to 1734 Mbps
1024QAM (2.4GHz) : up to 1000 Mbps
1024QAM (5GHz) : up to2167 Mbps
AntennaExternal antenna x 4
Transmit/ReceiveMIMO technology
2.4 GHz 4 x 4
5 GHz 4 x 4
Prosesor1.4 GHz dual-core processor
Memori128 MB Flash
512 MB RAM
Wi-Fi TechnologyBeamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
Operating Frequency2.4 GHz / 5 GHz
Encryption64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
Firewall & Access ControlAccess control:Parental control, Network service filter, URL filter, Port filter
ManagementUPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, SNMP, NTP Client, DDNS, Port Trigger, DMZ, System Event Log
WAN Connection TypeInternet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
UtilitiesRouter setup wizard; Firmware restoration; Device discovary; printer setup utility

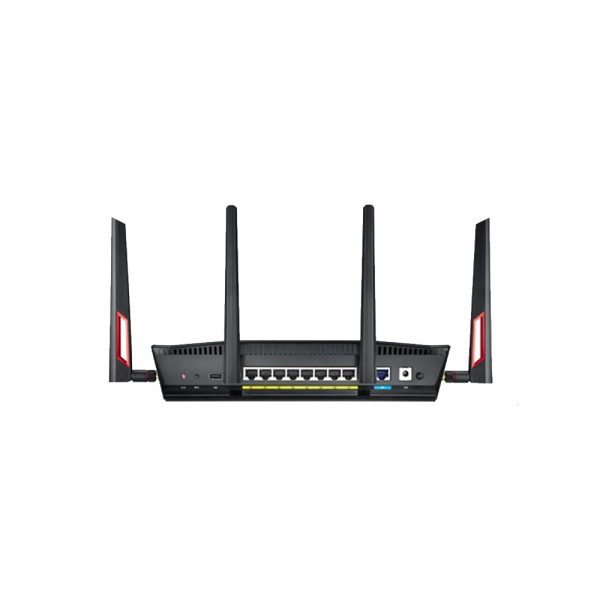

PortsRJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 8
USB 2.0 x 1
USB 3.0 x 1
TombolWPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button
FeaturesLink Aggregation
- 802.3ad
MU-MIMO
Traffic Analyzer
Adaptive QoS
AiProtection
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support
Roaming Assist
Indikator LEDPower x 1
Wi-Fi x 2
WAN x 1
USB x 2
WPS x 1
LAN x 1
Power SupplyAC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current
Dukungan OSWindows® 10
Windows® 8
Windows® 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Dimensi11.8 x 7.4 x 2.38 ~ inch (WxDxH)
(Without Bezel)
Berat950 g
Operation modeWireless router mode
Access point mode
Media bridge mode
