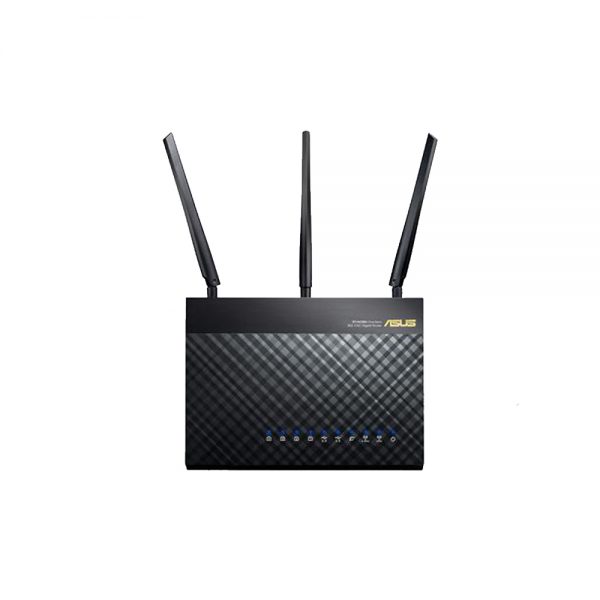

Wireless | ASUS RT-AC68U

AC1900 Dual Band Gigabit WiFi Router, AiMesh for mesh wifi system, AiProtection network security powered by Trend Micro, Adaptive QoS and Parental Control

  • Great Wi-Fi – Enjoy the combined dual-band speeds of up to 1900Mbps, 3X faster than 802.11n routers
  • Ultrawide Coverage – High-performance antennas and ASUS AiRadar eliminate dead spots
  • Commercial-grade Security – AiProtection, powered by Trend Micro™, blocks and neutralizes internet security threats for all your connected smart devices
  • AiMesh Supported – Connect your RT-AC68U to other compatible ASUS routers to create a powerful and flexible whole-home Wi-Fi network
  • Flexible Connectivity Options – 5X Gigabit Ethernet ports, 1X ultrafast USB 3.1 port and 1X USB 2.0 port
Category: Tags: , , ,

Description

Network StandardIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
Product SegmentAC1900 ultimate AC performance : 600+1300 Mbps
CoverageLarge homes
Data Rate802.11n : up to 450 Mbps
802.11n TurboQAM : up to 600 Mbps
802.11ac : up to 1300 Mbps
AntennaExternal antenna x 3
Transmit/ReceiveMIMO technology
2.4 GHz 3 x 3
5 GHz-1 3 x 3
Memori128 MB Flash
256 MB RAM
Operating Frequency2.4 GHz / 5 GHz
Encryption64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
Firewall & Access ControlFirewall:SPI intrusion detection,DoS protection
Access control:Parental control, Network service filter, URL filter, Port filter
ManagementUPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Universal Repeater, System Event Log
WAN Connection TypeInternet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
WAN Bridge support
Multicast Proxy support
Multicast Rate Setting support
PortsRJ45 for 10/100/1000/Gigabits BaseT for LAN x 4, RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1
USB 2.0 x 1
USB 3.0 x 1
TombolWPS Button, Reset Button, Power Button, Wireless on/off Button
FeaturesAirtime Fairness
Adaptive QoS
AiProtection
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support
Roaming Assist
Indikator LEDPower x 1
Wi-Fi x 2
LAN x 4
WAN x 1
USB x 2
Power SupplyAC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
Dukungan OSWindows® 10
Windows® 8.1
Windows® 8
Windows® 7
Windows® Vista
Windows® 2000
Windows® ME
Windows® XP
Windows® Server 2003
Windows® Server 2008
Mac OS X 10.1
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Mac OS X
Linux Kernel (Support Ubuntu only)
Linux
Dimensi220 x 83.3 x 160 ~ mm (WxDxH)
(Without Bezel)

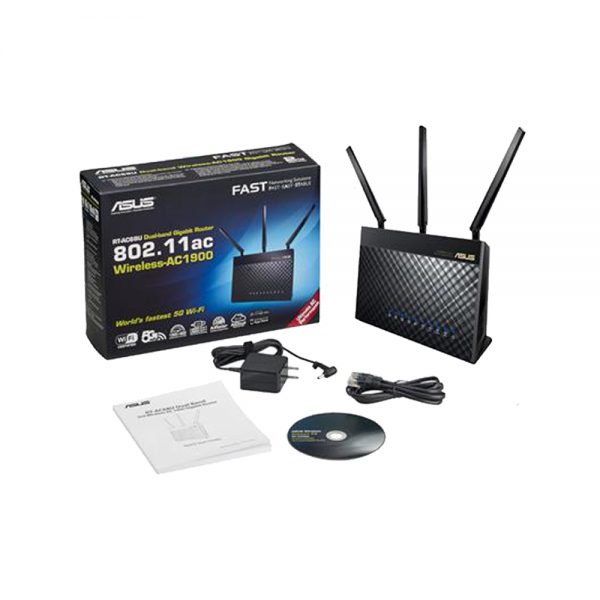

Package Content1 x RT-AC68U Wireless-AC1900 Dual Band Gigabit Router
1 x RJ-45 cable
1 x Power adapter
1 x QSG
1 x Support CD(user manual and ultility)
Operation modeWireless router mode
Range extender mode
Access point mode
Media bridge mode
