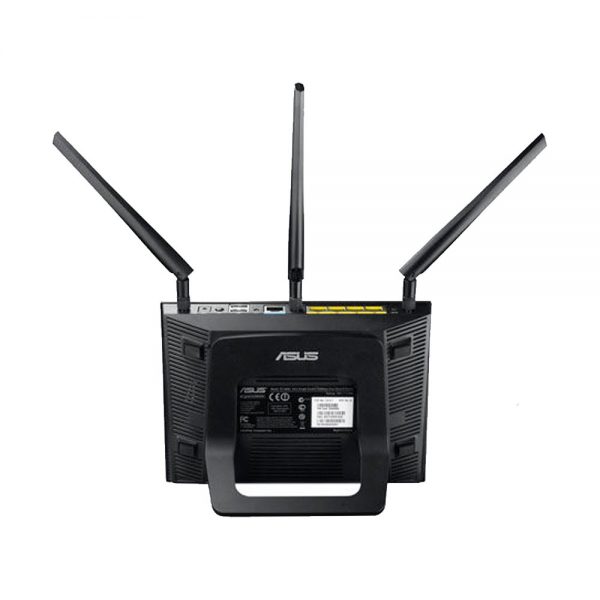

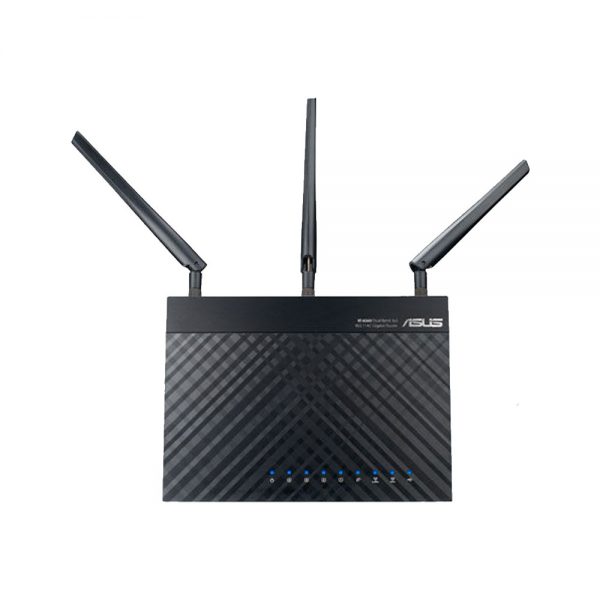

Wireless | ASUS RT-AC66U
802.11ac Dual-Band Wireless-AC1750 Gigabit Router
- Chipset 802.11ac generasi ke-5 memberikan dual band 2.4 Ghz/5 Ghz sampai dengan kecepatan super 1.75 Gbps bersamaan
- ASUS AiCloud service: Mengakses, stream, berbagi dan sync – semua siap jalan dengan ekspansi penyimpanan tak terbatas!
- Gigabit Ethernet ports untuk performa internet yang tercepat dan paling handal.
- AiRadar mengoptimalkan jangkauan wireless dengan antena berdaya tinggi yang dapat dilepas
- Nikmati dashboard UIASUSWRT dalam 3 langkah pengaturan yang mudah , pemantauan sinyal dan kontrol aplikasi jaringan
- Download Master untuk penyimpanan data wireless dan mengakses ke penyimpanan perangkat USB yang terhubung dengan router
- Berbagi File, berbagi printer, dan berbagi 3G via dua port USB multi fungsional yang tersedia
Description
| Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3u, IPv4, IPv6 |
| Product Segment | AC1750 superior AC performance : 450+1300 Mbps |
| Coverage | Large homes |
| Data Rate | 802.11n : up to 450 Mbps 802.11ac : up to 1300 Mbps |
| Antenna | Detachable antenna x 3 |
| Transmit/Receive | MIMO technology 2.4 GHz 3 x 3 5 GHz 3 x 3 |
| Memori | 128 MB Flash 256 MB RAM |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise |
| Firewall & Access Control | Firewall：SPI intrusion detection,DoS protection Access control：Parental control, Network service filter, URL filter, Port filter |
| Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, Universal Repeater, System Event Log |
| WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP Dual Link support Multicast Proxy support Multicast Rate Setting support |

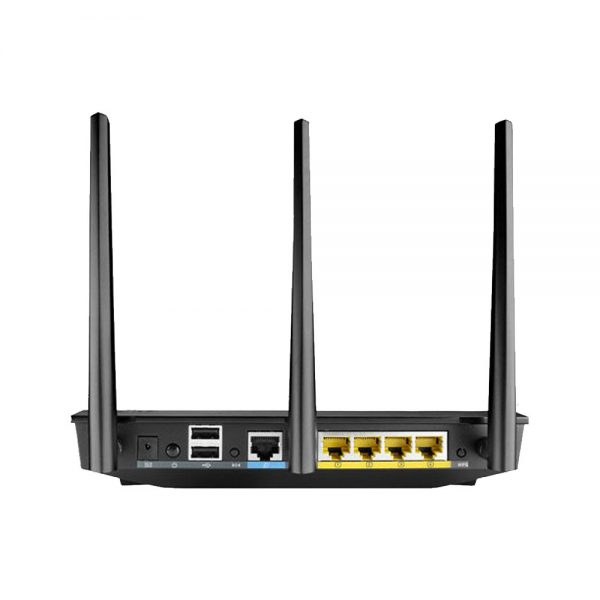

| Ports | RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4, Support Ethernet and 802.3 with max. bit rate 10/100/1000 Mbps and auto cross-over function(MDI-X) USB 2.0 x 2 |
| Tombol | WPS Button, Reset Button, Power Button |
| Features | Airtime Fairness SmartQoS - WMM - User definable rules for IP/MAC/Port - Upload and download bandwidth management - ACK/SYN/FIN/RST/ICMP with highest priority Parental Control Guest Network : 2.4 GHz x 3, 5 GHz x 3 VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server VPN client : PPTP client, L2TP client, OpenVPN client Enhanced media server (AiPlayer app compatible) - Image : Jpeg - Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg - Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov AiCloud personal cloud service 3G/4G data sharing Printer Server - Multifunctional printer support (Windows only) - LPR protocol support Download Master - Support bt, nzb, http, ed2k - Support encryption, DHT, PEX and magnet link - Upload and download bandwidth control - Download scheduling AiDisk file server - Samba and FTP server with account management Dual WAN IPTV support |
| Indikator LED | Power x 1 LAN x 4 WAN x 1 Wi-Fi x 2 USB x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 1.58 A current |
| Dukungan OS | Windows® 10 Windows® 8.1 Windows® 8 , 32bit/64bit Windows® 7 , 32bit/64bit Windows® Vista , 32bit/64bit Windows® XP , 32bit/64bit Mac OS X Linux |
| Dimensi | 207 x 148.8 x 35.5 ~ mm (WxDxH) (Without Bezel) |
| Package Content | RT-AC66U Dual Band 3x3 802.11AC Gigibit Router Router stand RJ-45 cable Support CD (User manual and utility software) Power adapter Quick start guide Warranty card |
| Operation mode | Wireless router mode Range extender mode Access point mode Media bridge mode |
